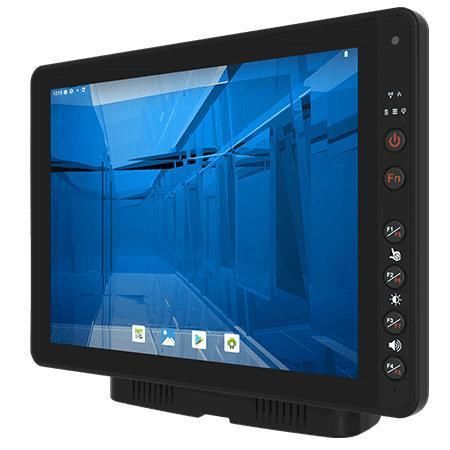

12.1" vehicle-mount computer FM12MG

MediaTek Genio 510MIL-STD-810HIP 65

Overview
The FM12MG is a 12.1-inch vehicle-mounted Android computer powered by an ARM Genio 510 CPU (2 x A78 2.0GHz + 4 x A55 2.0GHz). It features a Projected Capacitive (PCAP) multi-touch display, field-replaceable front panel, IP65-rated front protection, MIL-STD-810H shock and vibration compliance, fanless thermal design and detachable docking/mounting options for vehicle installations.

Key features

• Processor: ARM Genio 510 (2 x A78 2.0GHz + 4 x A55 2.0GHz)
• Display: 12.1-inch 1024 x 768 with PCAP multi-touch (hand, stylus, glove modes)
• Field-replaceable front panel to reduce onsite service time
• Front protection IP65 (dust/water resistant)
• Wide operating temperature range: -30°C to 60°C
• Fanless design; detachable docking with RAM/VESA mount support

Certifications

• CE
• FCC
• IP65 (front)
• MIL-STD-810 series compliance (referenced MIL-STD-810H)

Design highlights
Enhanced PCAP touchscreen interaction supports precise input by hand, stylus or gloved operator for industrial vehicle environments. Rugged construction meets MIL-STD shock and vibration tests and offers ESD protection. Detachable docking and multiple mounting options simplify installation in forklifts, trucks and other fleet vehicles while onboard UPS and ignition-controlled power inputs support vehicle power workflows.

Mounting examples (extract)

• Mounting 1 – No Drill Solution: RAM clamp mount (RAM-D-247U-4), RAM arm (RAM-D-201U), VESA + 2.25" ball (RAM-D-2461U)
• Mounting 2 – Drill Solution: Round base mount (RAM-D-202U), RAM arm (RAM-D-201U), VESA + 2.25" ball (RAM-D-2461U)
• Mounting 3 – Keyboard mounting: Winmate keyboard adapter plate (PN:821009131600) with VESA/AMPS holes and RAM arm options

Technical specifications

• Display: 12.1-inch, Projected Capacitive Multi-touch, 1024 x 768; brightness 400 nits (default), 800 nits (optional); contrast 1000:1; view angles 89/89/89/89
• Processor & memory: ARM Genio 510 (2 x A78 + 4 x A55); Memory 4 GB; Storage 64 GB onboard
• OS: Android 13 (default); optional Linux Yocto 5.10.104 + Qt 5.15; optional Ubuntu 22.04
• Wireless & GNSS: WLAN (internal antenna default, external optional); Bluetooth; optional WWAN (4G/LTE) and GNSS with external antennas
• Sensors & camera: G-sensor, temperature sensor; front camera 2 MP
• Mechanical: Tablet 307 x 225 x 41 mm; Docking 202 x 245 x 52 mm; Weight 2.5 kg; Mounting: RAM/VESA
• I/O: Tablet 1 x USB 2.0 Type-C (OTG); Docking: DB9 connector for 2 x USB 2.0, 2 x COM, 1 x Gigabit LAN; Audio: 2 x speakers (docking), CANBus/audio option; Micro SD slot; Dual-Nano SIM slot
• Environment: Operating humidity 5%–95% RH non-condensing; Operating temp -30°C to 60°C; Storage temp -30°C to 60°C; Shock MIL-STD-810H Method 516.8 Procedure I; Vibration MIL-STD-810H Method 514.8 Procedure I; Impact EN62262 IK07; ESD EN 61000-4-2 ±8kV contact / ±15kV air
• Power & battery: UPS battery 7.6V (2S1P) min. ~30 minutes; Docking power input 10V–60V with ignition control; Tablet DC input 12V
• Manageability & security: SOTI MobiControl support; physical controls: 1 power button, 5 programmable function keys
• Accessories: standard and optional accessories include power cables, antennas, stylus kit, fuse kit, RS232/CAN cables, IP65 LAN cable, USB-C to HDMI adapters, etc.
