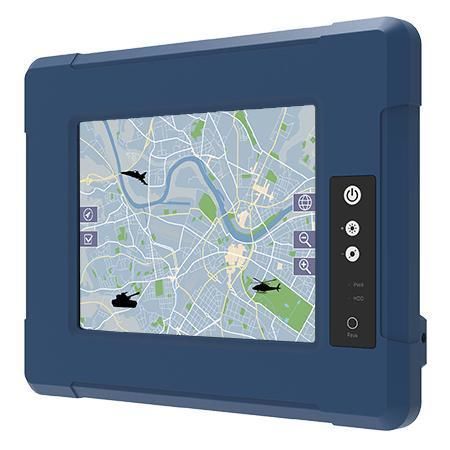

LCD panel PC R08IB3S-MLU1

5-wire resistive touch screentouch screen8.4"

Overview
Winmate R08IB3S-MLU1 is an 8.4-inch defense panel PC based on the Intel Celeron N2930 (Bay Trail). It is engineered for vehicle integration and mission-critical defense applications, featuring a fanless architecture, aluminum housing with anti-corrosion treatment, front IP65 protection (except I/O), and a lockable MIL‑DTL‑38999 type power connector. The unit is built and tested to MIL‑STD environmental and EMC references suitable for harsh operational environments.

Key Features

• Lockable defence-grade power connector (MIL‑DTL‑38999 type)
• Intel Celeron N2930 1.83 GHz (turbo up to 2.16 GHz)
• Fanless thermal design for silent, reliable operation
• 8.4" display, 800 x 600 resolution, 600 nits brightness
• Front IP65 dust/water protection (I/O excluded)
• Aluminum enclosure with anti‑corrosion treatment
• Meets shock & vibration requirements per MIL‑STD and IEC60068
• Optional 5‑wire resistive touchscreen and AR protection glass
• Optional WLAN (802.11 a/b/g/n) and Bluetooth
• Optional wide input 9–36 V DC

Certifications & Standards

• CE, FCC
• MIL‑STD‑461F (EMC) referenced; MIL‑STD‑461G available as option
• MIL‑STD‑810G / MIL‑STD‑810H (environmental) referenced
• Optional NATO STANAG / TEMPEST compliance selections

Display

• Size: 8.4 inches
• Resolution: 800 x 600
• Brightness: 600 nits
• Contrast Ratio: 600:1
• Viewing Angles: 75°/75°/60°/70°
• Active Area: 170.4 x 127.8 mm
• Touch / Glass: AR protection glass (default); optional 5‑wire resistive touch; EMI filter options

System Specification

• Processor: Intel Celeron N2930 1.83 GHz (turbo up to 2.16 GHz)
• Memory: 1 x SO‑DIMM DDR3L 1600 MHz, 4 GB default; up to 8 GB optional
• Storage: 1 x mSATA SSD 128 GB default; 256/512 GB optional
• Ethernet: 2 x Intel Ethernet controllers (2 x RJ45)
• OS: Windows 10 IoT Enterprise (64‑bit) optional; Linux Ubuntu 20.04 optional
• Optional WLAN / Bluetooth modules

Environment

• Operating Humidity: 10%–95% RH
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -30°C to 70°C
• Shock: MIL‑STD‑810H Method 516.8 (Operating: 30 g, 18 ms)
• Vibration: MIL‑STD‑810H Method 514.8 (Operating: up to ~2.18 g rms, 5–500 Hz)
• Optional NATO shock/vibration protocols

Compliance Details

• MIL‑STD‑461G: CE101, CE102, RE101, RE102, CS118 (default set); additional CS/RS tests optional
• MIL‑STD‑810H: selected environmental methods referenced; configuration‑dependent testing

IO Ports

• USB: 1 x USB 2.0; 1 x USB 3.0
• Serial: 1 x RS232 (default) — optional RS422/RS485
• LAN: 2 x RJ45
• Video: 1 x HDMI (optional)
• Indicators: PWR LED, HDD LED

Mechanical

• Dimensions: 277 x 219.5 x 59.7 mm
• Weight: 2.3 kg
• Mounting: VESA mount compatible
• Enclosure: Metal housing with aluminum bezel
• Cooling: Passive (fanless)

Power

• Default: 12 V DC via MIL‑DTL‑38999/1 lockable connector
• Optional: 9–36 V DC wide input

Control

• Front panel keys: Power, Brightness Up, Brightness Down, Reset

Accessories

• User manual
• Driver CD (touch & system), touch driver CD
• Open‑wire cable
• 100–240 V AC to DC adapter and power cord

Technical specifications

• Model: R08IB3S-MLU1
• Brand: Winmate
• Display: 8.4", 800 x 600, 600 nits
• CPU: Intel Celeron N2930 (1.83–2.16 GHz)
• Memory: 4 GB DDR3L default (up to 8 GB)
• Storage: mSATA SSD 128 GB default (up to 512 GB)
• Protection: Front IP65 (I/O excluded)
• Rugged standards: MIL‑STD‑810G/H, MIL‑STD‑461F/G (configuration dependent)
• Dimensions / Weight: 277 x 219.5 x 59.7 mm / 2.3 kg
