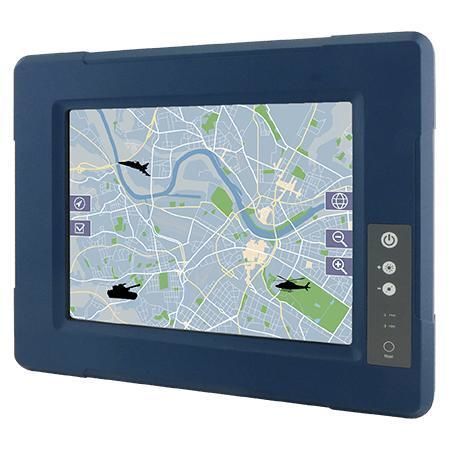

TFT LCD panel PC R10IB3S-MLT2

5-wire resistive touch screentouch screen10.4"

Overview
The Winmate R10IB3S-MLT2 is a 10.4-inch defence-grade Panel PC powered by an Ultra Low Power Intel® Celeron® N2930 platform. It is engineered for vehicle-mounted and field-command systems where MIL-STD performance, fanless operation and front IP65 protection (except I/O) are required.

Key Features

• Defence-grade lockable power connector (MIL-DTL-38999 type I)
• Intel® Celeron® N2930 1.83 GHz (burst up to 2.16 GHz)
• Fanless thermal design for vibration-prone environments
• 10.4" display, 1024 x 768 resolution, 500 nits (panel)
• Front protection IP65 (excluding I/O), aluminium housing with anti-corrosion treatment
• Shock and vibration tested to MIL-STD-810F/G and IEC60068-2-27
• Touch options: AR protection glass (default), 5-wire resistive, EMI glass or EMI mesh filter
• Optional WLAN (802.11 a/b/g/n) and Bluetooth; optional wide-range 9–36 V DC input

Certifications

• MIL-STD-461 series (EMC)
• MIL-STD-810 series (environmental: shock, vibration, humidity, transit drop)
• CE, FCC

Product Highlights & Use Cases
Designed and verified for defence and harsh-environment deployment. Typical applications include vehicle-mounted HMI for navigation and communications, field command terminals, and mission-critical mobile systems requiring MIL-STD shock/vibration and EMC compliance.

I/O & Controls

• USB: 1 x USB 2.0, 1 x USB 3.0
• Serial: 1 x RS232 (default), optional RS422/485
• LAN: 2 x RJ45 (Intel® controllers)
• Video: 1 x HDMI (optional)
• Indicators: Power LED, HDD LED
• Front keys: Power, Brightness Up, Brightness Down, Reset (4 keys)

Technical Specifications

• Model: R10IB3S-MLT2
• Brand: Winmate
• Display: 10.4 inches, 1024 x 768, active area 210.4 x 157.8 mm
• Panel brightness: 500 nits; contrast ratio: 1000:1; viewing angles: 88/88/88/88
• Processor: Intel® Celeron® N2930 1.83 GHz (up to 2.16 GHz)
• Memory: 1 x SO-DIMM DDR3L 1600 MHz — 4 GB default, 8 GB optional
• Storage: 1 x mSATA SSD — 128 GB default; 256/512 GB optional
• Operating systems: Windows 10 IoT Enterprise (64-bit) optional; Linux Ubuntu options
• Environmental: Operating temp -20 °C to 60 °C; storage temp -30 °C to 70 °C; operating humidity 10%–95% RH
• Shock & Vibration: MIL-STD-810H Methods (Operating: 30 g / 18 ms shock; vibration 1.60/1.96/2.18 g rms, 5–500 Hz)
• Dimensions: 315.9 x 250.9 x 67 mm; mounting: VESA
• Enclosure: Metal housing with aluminium bezel, anti-corrosion treatment
• Power: 12 V DC via MIL-DTL-38999/1 connector default; optional 9–36 V DC wide range
