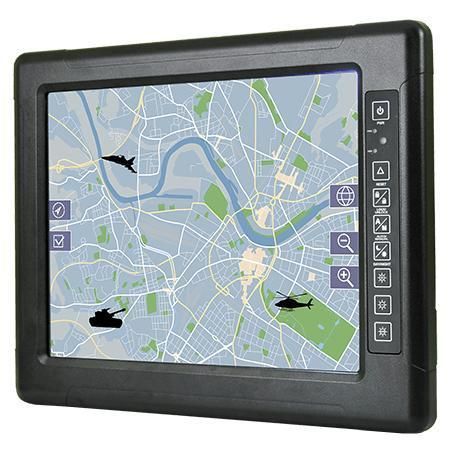

5-wire resistive touch screen panel PC R15IB3S-MLA3HB

1000 nitssunlight-readable15"

Overview
Winmate R15IB3S-MLA3HB is a 15-inch Defence G-WIN Panel PC engineered for mission-critical field and vehicle-mounted systems. It features a fanless design, Intel Celeron N2930 processor, sunlight-readable 15" display at 1000 nits, MIL-STD shock and vibration compliance, IP65 front protection (excluding I/O), and an aluminium housing with anti-corrosion treatment. The unit is supplied with a defence-grade lockable power connector for secure vehicle integration.

Key Features

• Built-in ambient light sensor
• 15" XGA panel, 1024 x 768 resolution, 1000 nits brightness
• AR protection glass (default) / optional 5-wire resistive touch and EMI options
• Fanless thermal design
• MIL-STD shock & vibration compliance and optional MIL-STD-461G EMC mappings
• Front IP65 dust/water protection (except I/O)
• Aluminium housing with anti-corrosion treatment
• Defence-grade lockable power connector (MIL‑DTL‑38999 Type I)
• Wide DC input options (12 V default; 9–36 V optional)

Certifications

• CE
• FCC

Application & Design Highlights
The R15IB3S-MLA3HB is designed for rugged vehicle and stationary defence installations such as armored vehicles, ground control stations and air traffic control. It supports vibration-resistant mounting, vehicle docking, sunlight-readable panels and lockable power connectors to meet defence integration and operational requirements.

Accessories

• User manual
• Driver CD / Touch driver CD
• Open wire cable
• 100–240V AC to DC adapter
• Power cord

Technical specifications

• Model: R15IB3S-MLA3HB
• Brand: Winmate
• Display: 15.0 inches, 1024 x 768, 1000 nits, contrast 2500:1, active area 304.1 x 228.1 mm
• Touch / Glass: AR Protection Glass (default); 5-wire resistive touch (optional); EMI filter/glass options (optional)
• Processor: Intel Celeron N2930 1.83 GHz (burst up to 2.16 GHz)
• Memory: 1 x SO-DIMM DDR3L 1600 MHz — 4 GB default (8 GB optional)
• Storage: 1 x mSATA SSD 128 GB default (256/512 GB optional)
• Ethernet: 2 x Intel® Ethernet (2 x RJ45)
• IO: 1 x USB 3.0, 1 x USB 2.0; Serial ports RS-232/422/485 options; 1 x HDMI (optional)
• Operating temp/humidity: -20°C to 60°C; 10% to 95% RH
• Shock/Vibration: MIL-STD-810H / IEC60068-2-27 compliance (various test options)
• Power: 12 V DC (MIL‑DTL‑38999/1 connector) default; 9–36 V DC optional
• Dimensions / Mounting: 398 x 308 x 58 mm; VESA mount
