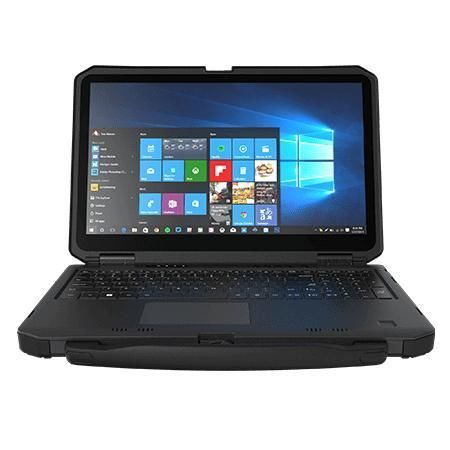

Intel® Core™ i7-12700H laptop computer L156AD- M1

NVIDIA GeForceWindows 10 IoT EnterpriseWindows 11 IoT Enterprise

Overview
The L156AD-M1 is a 15.6-inch ultra-rugged laptop engineered for industrial automation, field service and mission-critical edge computing. It integrates 12th‑gen Intel® Alder Lake processors with optional MXM discrete GPUs, a sunlight‑readable FHD PCAP touch panel, dual hot‑swappable batteries and a magnesium‑alloy chassis with reinforced drop protection to ensure continuous operation in harsh environments.

Key features

• 12th generation Intel® Alder Lake processors (configurable up to Core i9)
• 15.6" FHD display with Projected Capacitive (PCAP) multi-touch, 800 nits (1000 nits optional)
• Optional MXM discrete GPUs (examples: NVIDIA A1000 / A2000 / A500 or Intel A370M)
• Dual hot‑swappable batteries for uninterrupted field operation
• Optical bonding and anti‑glare treatment for sunlight readability
• Magnesium alloy chassis with double‑injection molding for drop resistance
• IP66 sealing for dust and high‑pressure water jets

Certifications & Compliance

• MIL‑STD‑810H (drop, shock, vibration methods)
• MIL‑STD‑461G (EMC)
• IP66 ingress protection
• CE, FCC

Design highlights & reliability
Rugged mechanical design with fan cooling, military‑grade shock/vibration/drop validation and sealed construction. The high‑brightness display and environmental ratings support outdoor, vehicle and multi‑shift deployments where reliability and long lifecycle availability are required.

Connectivity & expansion
Comprehensive I/O and modular options for industrial integration: USB 3.0 Type‑C (ALT/PD) and Type‑A ports, dual Gigabit Ethernet, DB9 serial (RS‑232/RS‑422/RS‑485 software‑switchable), optional HDMI 4K output, microSDXC, nano‑SIM, GNSS (GPS/GLONASS), optional WWAN (4G/5G), Bluetooth and WLAN. MXM slot enables discrete GPU upgrades and specialized expansion modules.

Security & manageability
TPM 2.0 available, Kensington lock, optional fingerprint scanner, smart card / HF RFID reader options and SOTI MobiControl compatibility for fleet management and remote provisioning.

Power & battery
Two hot‑swappable 11.55V typ. 3220 mAh Li‑Ion batteries (3S1P) enable prolonged field operation; typical runtime approx. 11 hours (measured at dimmed brightness). AC adapter: 100–240V 50–60Hz, 19V DC / 230W (adapter spec may list 20V DC).

Additional notes
Optional components and accessories vary by configuration (spare batteries, chargers, vehicle adapters, discrete GPUs, WWAN modules). Usable memory/storage depends on configuration. Some features require specific options or regional variants. Specifications subject to change.

Technical specifications

• Model: L156AD-M1
• Display: 15.6 inches, PCAP multi‑touch, 1920 x 1080 (FHD)
• Brightness: 800 nits (standard), 1000 nits (optional)
• Processor: Intel Core i7‑12700H (up to 4.7 GHz) default; Intel Core i9 optional
• Memory: 8+8 GB (default); options up to 32+32 GB
• Storage: 128 GB SSD (default); options up to 2 TB SSD; 2nd storage bay optional
• Discrete GPU (optional): MXM cards (A1000, A2000, A500; Intel A370M option)
• Front camera: 2 MP
• Dimensions: 387.6 x 256 x 38.8 mm
• Weight: 3.8 kg
• Cooling: Fan design
• USB: 1 x USB 3.0 Type‑C (ALT/PD), 3 x USB 3.0 Type‑A
• Serial: 1 x DB9 (RS‑232/RS‑422/RS‑485, software‑switchable)
• LAN: 2 x RJ45 10/100/1000
• Video: 1 x HDMI 4K (optional)
• Audio: 1 x 3.5 mm combo jack; dual digital mic w/ noise cancellation; dual speakers
• Card slots: microSDXC, nano‑SIM
• Indicators: 4x LEDs (Power, Drive, Battery1, Battery2)
• Wireless: WLAN, Bluetooth, GNSS (GPS/GLONASS); optional WWAN 4G/5G
• Security: TPM 2.0 (optional), Kensington Lock, fingerprint and smart card reader options
• Environment: Operating humidity 10%–90% RH non‑condensing; operating temp -20°C to 60°C; storage temp -40°C to 70°C
• Shock/Vibration/Drop: MIL‑STD‑810H methods; Drop 4 ft
• IP rating: IP66
• EMC: MIL‑STD‑461G
• Battery runtime: ~11 hours (typical, standard battery, dimmed brightness)
