Intel Core i7 laptop computer L156AD

Intel® Core i5-1235UNVIDIA GeForceWindows 10 IoT Enterprise

Product Name

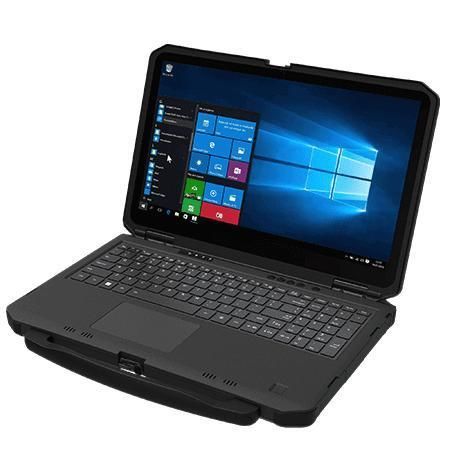

Winmate L156AD — 15.6-inch ultra-rugged laptop with Intel® Alder Lake processor, 15.6" FHD PCAP touch, dual hot-swappable batteries, magnesium alloy enclosure, IP65.

Key Features

• 12th generation Intel® Alder Lake processors (multiple i5/i7/i9 options)
• 15.6" FHD Projected Capacitive (PCAP) multi-touch display; 800 nits standard, 1000 nits optional
• Dual hot-swappable battery design for continuous field operation
• Optical bonding and anti-glare technologies for sunlight readability
• Magnesium alloy chassis with double-injection protection; validated to MIL‑STD‑810H
• IP65 ingress protection for dust and water resistance

Certifications & Compliance

• IP65
• MIL‑STD‑810H (shock, vibration, drop)
• MIL‑STD‑461G (EMC)
• CE, FCC

Overview
The L156AD is engineered for industrial automation, embedded systems and mission-critical field work. It combines configurable Intel® Alder Lake CPUs with optional discrete NVIDIA graphics for graphics-intensive tasks, a sunlight-readable 15.6" FHD PCAP display, and rugged mechanical design to operate in harsh environments. Connectivity supports WLAN, Bluetooth, optional WWAN (4G/5G), GNSS and extensive I/O for peripherals and docking.

Notes / Important Remarks

• Accessories and integrated options vary by configuration.
• Available memory and storage depend on system configuration; usable capacity may be lower.
• Actual transfer speeds depend on host device and configuration.
• USB Type-C behavior depends on implemented standard; not all alternate modes or PD features are guaranteed unless specified.
• Battery runtime measured at reduced brightness; actual runtime varies with usage and attached devices.
• Some security/management features (TPM 2.0, SOTI MobiControl) are optional or available on request.
• Product appearance, specifications and availability may vary by model and region.

Technical specifications

• Model: L156AD
• Display: 15.6" FHD (1920×1080) PCAP touch; 800 nits (std) / 1000 nits (opt)
• Processor: Intel Core i5-1235U (std); optional Intel Core i5-120U, i7, i9
• Memory: 8 GB (std); options 16/32/64 GB
• Storage: 128 GB SSD (std); options up to 2 TB; optional second storage up to 2 TB
• Security: TPM 2.0, Kensington lock; optional fingerprint or smart card reader
• OS: Windows 11 IoT Enterprise LTSC (64-bit) default; Windows 10 IoT Enterprise LTSC optional
• I/O: 1× USB 3.0 Type-C (ALT/PD), 3× USB 3.0 Type-A, 1× DB9 serial (RS232/RS422/RS485), 2× RJ45 (1G), 1× HDMI 4K (opt), 1× audio combo jack, Micro SDXC, Nano SIM
• Camera: 2 MP front
• Battery: 2× hot-swappable 11.55 V typ. 3220 mAh Li‑Ion (3S1P); std runtime ~11 hours
• Dimensions / Weight: 387.6 × 256 × 38.8 mm; approx. 3.5 kg
• Operating conditions: -29°C to 63°C; 10% to 90% RH non-condensing
• Certifications: IP65, MIL‑STD‑810H, MIL‑STD‑461G, CE, FCC
