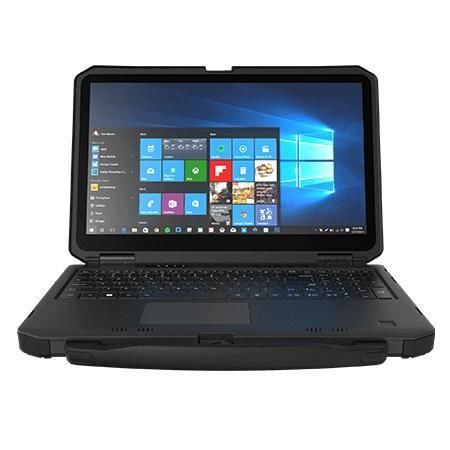

Intel® Core™ i9-12900H laptop computer L156AD-4KM1

Intel® Core™ i7-12700HIntel HD GraphicsNVIDIA GeForce

Product overview
Winmate L156AD-4KM1 is a 15.6-inch ultra-rugged laptop based on 12th generation Intel® Alder Lake processors. Designed for industrial automation, embedded systems and mission-critical field deployments, it combines a 4K PCAP touch display with optional discrete MXM GPUs, dual hot-swappable batteries and a magnesium-alloy enclosure rated IP65 for front-side protection.

Key features

• 12th gen Intel® Alder Lake mobile CPUs (Intel Core i7-12700H default; Core i9 optional)
• 15.6-inch 4K (3840x2160) PCAP touch panel with optical bonding and anti-glare
• Optional MXM discrete GPU modules (NVIDIA/Intel options)
• Dual hot-swappable batteries for continuous field operation
• Magnesium-alloy chassis with double-injection molding for drop protection
• Front-side IP65 protection; MIL‑STD durability options

Durability & certifications
Designed for harsh environments: optical bonding and anti-glare for sunlight readability, magnesium-alloy enclosure with reinforced molding, and tested to MIL-STD-810H (shock, vibration, drop). Front-side IP65 rating ensures resistance to dust and water jets. MIL‑STD‑461G EMC options and CE/FCC certifications are available.

Performance & expansion
Platform supports high-performance mobile Intel CPUs, multiple memory and storage configurations, MXM graphics modules for GPU acceleration, and additional storage bays for field upgrades. Typical memory options range from 8+8GB up to 32+32GB; storage options include up to 2TB SSD plus secondary bay.

Connectivity
Comprehensive I/O for field deployments: WLAN, Bluetooth, optional WWAN (4G/5G), GNSS (GPS/GLONASS), 2 x RJ45 Gigabit LAN, 1 x USB-C (ALT/PD as specified), multiple USB-A ports, DB9 serial (RS232/RS422/RS485 switchable), HDMI 4K output (optional), Micro SDXC and Nano SIM slot.

Battery & power
Dual hot-swappable 11.55V typ. 3220 mAh Li‑Ion batteries (2 x) deliver extended runtime; typical standard battery operating time is approx. 11 hours under specified test conditions. AC adapter supports global input (100-240V, 50-60Hz) and system power varies by configuration (adapter examples: 240W / 20V DC).

Optional GPU & accelerators
Supports MXM discrete GPU modules to accelerate graphics and AI workloads. Example MXM options include A1000, A2000 and A500 classes (availability depends on configuration and region).

Accessories

• Standard: AC adapter and power cord, standard battery
• Optional: spare/high-capacity batteries, dual-bay battery charger, vehicle charger, carry bag

Notes & disclaimers
Accessories, options and total usable memory/storage depend on configuration. Measured battery life varies with usage and settings. Specifications, functions and appearance may change by model or market. Certain options require specific hardware choices.

Technical specifications

• Model: L156AD-4KM1
• Manufacturer: Winmate
• Display: 15.6 inches, Projected Capacitive Multi Touch (PCAP), 3840 x 2160 (4K)
• Panel brightness: 400 nits; Contrast: 800:1; View angles: 85/85/85/85; Optical bonding
• Processor: Intel Core i7-12700H default; Intel Core i9 optional
• Memory: default 8+8GB; optional 16+16GB, 32+32GB
• Storage: default 128GB SSD; optional 256GB/512GB/1TB/2TB; 2nd storage bay optional up to 2TB
• Security: TPM 2.0, Kensington Lock
• OS: Windows 11 IoT Enterprise LTSC (64-bit) default; Windows 10 IoT Enterprise LTSC optional
• Wireless: WLAN, Bluetooth; WWAN 4G LTE / 5G optional
• GNSS: GPS, GLONASS
• RFID/Fingerprint/Smart Card: optional modules
• Discrete GPU: M1 A1000 MXM, M2 A2000 MXM, M3 A500 MXM (optional)
• Front camera: 2 MP
• Dimensions: 387.6 x 256 x 38.8 mm; Weight: approx. 3.8 kg (varies by config)
• USB: 1 x USB 3.0 Type-C (ALT/PD as specified), 3 x USB 3.0 Type-A
• Serial: 1 x DB9 (RS232/RS422/RS485, software-switchable)
• LAN: 2 x RJ45 10/100/1000
• Video: 1 x HDMI 4K output (optional)
• Audio: 1 x 3.5mm combo jack; dual digital mic with noise cancellation; dual speaker
• SD: 1 x Micro SDXC slot; SIM: 1 x Nano SIM slot
• Indicators: 4 x LEDs (Power, Drive, Battery1, Battery2)
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: -29°C to 63°C; Storage temperature: -30°C to 70°C
• Shock/Vibration/Drop: MIL-STD-810H methods; Drop default: Method 516.8 Procedure IV, 4 ft
• IP rating: IP65
• EMC: MIL-STD-461G options
• Battery: Hot-swappable 2 x 11.55V typ. 3220 mAh Li‑Ion (3S1P)
• Battery operating time: Standard approx. 11 hours (measured under specific conditions)
• Power rating: 19V DC; Adapter: 100-240V, 50-60Hz
• Certifications: CE, FCC
