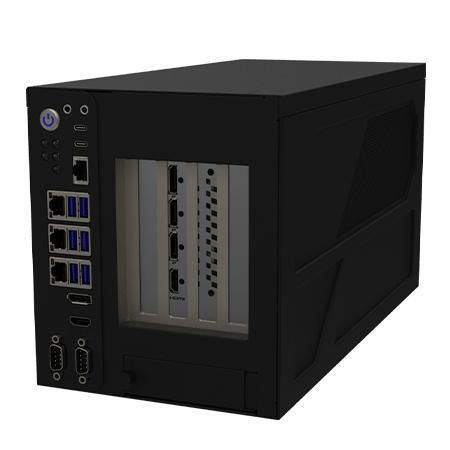

Edge AI PC WNAI-E800S

AI InferenceGPUdesktop

AI Summary
Winmate WNAI-E800S is an industrial Edge AI computer designed for machine vision, edge AI inference and industrial automation. It combines Intel® Raptor Lake‑S processors with support for a single high-end NVIDIA GPU to provide on-site inference, sensor data acquisition and stable 24/7 operation in rugged or mission-critical environments.

Key Features

• Supports Intel® 12th/14th Gen Raptor Lake‑S processors (LGA 1700)
• Supports a single NVIDIA RTX PRO 6000 Blackwell or RTX 5080 GPU
• Up to 2 x 262-pin SO‑DIMM DDR, up to 96 GB (48 GB per slot)
• 6 x USB 3.2 Gen2 Type‑A ports and 3 x Intel® 2.5 Gigabit LAN
• Dual independent displays: 1 x HDMI 2.0b, 1 x DP 1.4a (DP++)
• Intel® vPro support and TPM 2.0 for secure remote management
• Rugged metal enclosure and wide operating temperature range

Overview
Engineered for high-throughput AI workloads, the WNAI-E800S accelerates machine vision, defect inspection and deep learning inference at the edge by accommodating a single high-performance NVIDIA RTX-class GPU and up to 96 GB of DDR memory. The platform is intended for system integrators, OEMs and industrial users requiring reliable hardware integration and long lifecycle availability.

Processing, Memory & OS
The system supports Intel® Core™ processors (example defaults: i7-14700T, optional i9-14900T) on an Intel® R680E chipset. Memory is provided by 2 x non‑ECC SO‑DIMM slots (up to 96 GB). Storage options include default 128 GB SSD with configurable SSD capacities up to 4 TB and 2 x SATA III for 2.5" drives (RAID optional). Supported OS options: Windows 10/11 IoT Enterprise, Windows 11 Pro, Linux Ubuntu 24.04.

I/O & Connectivity
The unit offers extensive I/O for industrial AIoT integration: 6 x USB 3.2 Gen2 Type‑A, 3 x Intel® 2.5 GbE (RJ45), 2 x RS232/422/485, 1 x nano SIM slot, audio I/O, dual display outputs, M.2 slots for Wi‑Fi/WWAN and PCIe expansion including a PCIe x16 slot for NVIDIA GPUs.

Rugged Design & Thermal
Metal housing with fan‑based active cooling and advanced thermal management supports sustained CPU/GPU loads. Operating temperature is specified in product highlights as -25°C to 60°C (detailed spec lists -20°C to 60°C). Designed for continuous 24/7 edge deployment in harsh environments.

Technical specifications

• Model: WNAI-E800S
• Manufacturer / Brand: Winmate
• Processor: Intel® Core™ i7-14700T (default); Intel® Core™ i9-14900T (optional)
• Chipset: Intel® R680E
• Memory: 2 x non‑ECC SO‑DIMM, up to 96 GB
• Storage: 128 GB SSD (default); optional 256 GB / 512 GB / 1 TB / 2 TB / 4 TB; 2 x SATA III for 2.5" SSD/HDD (RAID optional)
• Graphics: Supports NVIDIA RTX PRO 6000 Blackwell / RTX 5080 (single GPU)
• Ethernet: 3 x Intel® 2.5 Gigabit Ethernet
• Security: TPM 2.0, Intel® vPro support
• OS (optional): Windows 10/11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Linux Ubuntu 24.04
• WLAN / Bluetooth: Optional via M.2 modules
• USB: 6 x USB 3.2 Gen2 Type‑A
• Serial: 2 x RS232/422/485 (default RS232)
• Video outputs: 1 x DP1.4a (DP++), 1 x HDMI 2.0b (4096x2160@60Hz)
• Audio: Mic in, Line out
• SIM: 1 x nano SIM slot
• Expansion: 1 x M.2 2230 E‑Key (Wi‑Fi); 1 x M.2 3042/3052 B‑Key (WWAN); 1 x PCIe x16 (16 lanes) for GPU; additional PCIe x8 slots
• Power input: 3+4 pin terminal block DC 8–48V, Max up to 1000 W
• Cooling: Active fan design
• Dimensions: 360 x 170 x 196 mm
• Weight: 7.85 kg
• Mounting: Desk mount
• Enclosure: Metal housing
• Operating humidity: 10%–90% RH non‑condensing
• Operating temperature: -25°C to 60°C (note: some detailed specs list -20°C to 60°C)
• Storage temperature: -40°C to 70°C
• Certifications: CE, FCC
