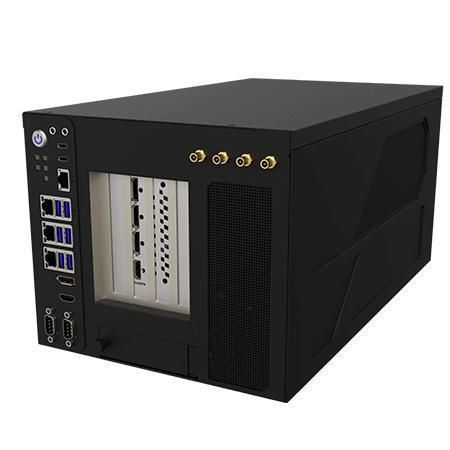

Box PC WNAI-E800L

Edge AIartificial intelligenceAI Inference

Overview
Winmate WNAI-E800L is an industrial edge AI computer for machine vision, edge inference and industrial automation. It pairs Intel® Raptor Lake‑S processors with support for a single high‑end NVIDIA® RTX GPU to enable real‑time AI processing in demanding environments.

Key features

• Supports Intel® 12th/14th Gen Raptor Lake‑S processors (LGA 1700)
• Supports single NVIDIA® RTX PRO 6000 Blackwell or RTX 5090 GPU (PCIe x16)
• Up to 2×262‑pin SO‑DIMM, up to 96 GB (48 GB per slot)
• 6× USB 3.2 Gen2 Type‑A and 3× Intel® 2.5 GbE LAN ports
• Dual independent displays: 1×DP 1.4a, 1×HDMI 2.0b
• Intel® vPro and TPM 2.0 support for remote management and security
• Metal enclosure with fan cooling and wide operating temperature range

Applications
Designed for continuous, high‑compute edge workloads such as AI‑assisted defect inspection, industrial machine vision, deep learning inference, robotics and AIoT gateways. Extensive I/O and expansion options simplify integration into automated production lines and robotic systems.

Specifications (select highlights)

• Model: WNAI‑E800L — Brand: Winmate
• Default CPU: Intel® Core™ i7‑14700T (up to 5.2 GHz); optional Intel® Core™ i9‑14900T (up to 5.5 GHz)
• Chipset: Intel® R680E
• Memory: 2× non‑ECC SO‑DIMM, up to 96 GB (48 GB per DIMM)
• Storage: 128 GB SSD default; options up to 4 TB; 2× SATA III for 2.5" drives (RAID optional)
• Ethernet: 3× Intel® 2.5 Gigabit Ethernet controllers
• Power: AC 3‑pin input for ATX PSU, up to 1200 W

I/O & Expansion

• USB: 6× USB 3.2 Gen2 Type‑A
• Serial: 2× RS232/422/485 (default RS232)
• Video: 1× DP1.4a (DP++), 1× HDMI 2.0b (max 4096×2160@60Hz)
• Expansion: 1× PCIe x16 (16 lanes) for NVIDIA® RTX GPU, PCIe x8/x8 options, M.2 2230 E‑Key (Wi‑Fi), M.2 3042/3052 B‑Key (WWAN)
• SIM: 1× nano SIM slot; Audio: Mic in / Line out

Compliance & Environment

• Certifications: CE, FCC
• Operating temperature: specified −20 °C to 60 °C (marketing references −25 °C to 60 °C)
• Storage temperature: −40 °C to 70 °C
• Operating humidity: 10%–90% RH non‑condensing
