EDGE PC NTDRW100

Edge AIAI Inferencebox

Product overview

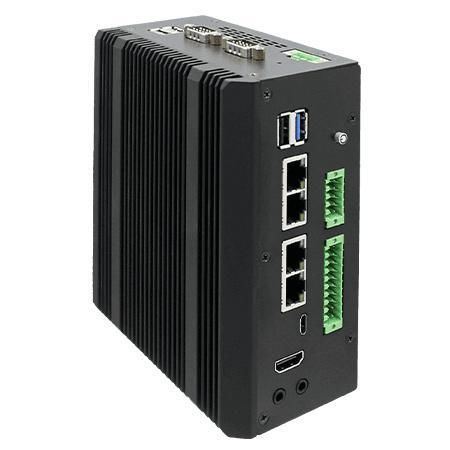

The Winmate NTDRW100 is a DIN‑rail AI Box PC powered by NVIDIA® Jetson Orin™ Nano, built for industrial machine vision, edge AI inference and automation. Its compact, fanless aluminum/metal housing, wide‑range isolated power input and extensive industrial I/O make it suitable for control cabinets, line‑side inspection and distributed edge deployments aimed at OEMs and system integrators.

Key features

• NVIDIA® Jetson Orin™ Nano (up to 67 TOPS)
• 3 x 1 Giga LAN + 1 x 1 Giga LAN with PSE (PoE, up to 30 W)
• 4 x USB 3.2 Gen2x1 + 1 x USB 2.0 + USB‑C OTG
• 3 x COM (isolated options), 1 x CAN FD (DB9)
• Isolated DIO 8‑in / 8‑out (20‑pin terminal block)
• Isolated DC input 9–36 V, fanless design, DIN‑rail / mini‑DIN‑rail / wall mount

System specification

• Processor: NVIDIA® Jetson Orin™ Nano
• Memory: 8GB LPDDR5 @ 2133 MHz on SOM
• Storage: M.2 2280 M‑Key NVMe SSD 256GB (default); options: 512GB / 1TB / 2TB
• Ethernet: 1 x GbE via Orin Nano (PSE up to 30W) + 3 x GbE
• Security: TPM 2.0
• OS: Linux (supports NVIDIA JetPack 6.2) — optional
• Wireless: optional via M.2 (WLAN/BT/WWAN)
• Expansion: M.2 2230 E‑Key, M.2 3042/3052 B‑Key

Mechanical

• Dimensions: 130 x 68 x 150 mm
• Weight: 2.5 kg
• Mounting: DIN‑Rail (default); Mini DIN‑Rail or wall mount (optional)
• Enclosure: Aluminum and metal housing, fanless

Environment

• Operating humidity: 10%–90% RH, non‑condensing
• Operating temperature: -20 °C to +60 °C
• Storage temperature: -40 °C to +70 °C
• Optional shock/vibration: MIL‑STD‑810H (select procedures)

Certification

• CE
• FCC

IO ports and interfaces

• USB: 3 x USB3.2 Gen2 Type‑A, 1 x USB2.0 Type‑A, 1 x USB3.2 Gen2 Type‑C (OTG)
• Serial: 2 x isolated RS‑232/422/485 (10‑pin terminal block, jumper‑selectable), 1 x isolated RS‑232/422/485 (DB9, BIOS‑selectable)
• LAN: 1 x 10/100/1000 Mbps (via Orin Nano with PSE up to 30 W) + 3 x 10/100/1000 Mbps
• Video: HDMI 2.0b (optional) up to 3840 x 2160 @ 30Hz
• Audio: Mic in, Line out
• SIM: 1 x nano SIM (optional)
• CAN: 1 x CAN FD (DB9)
• DIDO: 8 in / 8 out isolated (20‑pin terminal block) with 2500 VDC isolation protection
• Indicator: Power LED

Power

• Power input: Isolated 9–36 V DC via 3‑pin terminal block
• PoE (PSE): IEEE 802.3at (up to 30 W) on designated LAN port

Control & buttons

• Power button with LED
• Recovery button

Accessories

• Included: 20‑pin terminal block (DIDO), 3‑pin power terminal block, 10‑pin COM terminal block, open wire cable, 3‑pin to 2.5Ø female adapter cable, DIN‑rail mount kit
• Optional: 100–240 V AC to DC adapter (12 V, 120 W), power cord, mini‑DIN‑rail kits, wall mount kits

Applications & suitability
Designed for line‑side AI inspection, machine vision, smart factory automation, facility monitoring, robotics control and distributed edge AI deployments where compact footprint, industrial I/O and AI acceleration are required.

Technical specifications

• Model: NTDRW100
• Brand: Winmate
• CPU: NVIDIA® Jetson Orin™ Nano (up to 67 TOPS)
• Memory: 8GB LPDDR5 (on SOM)
• Storage: M.2 2280 NVMe SSD (256GB default; up to 2TB optional)
• Ethernet: 1 x GbE with PSE (30W) + 3 x GbE
• USB: 3 x USB3.2 Gen2 Type‑A, 1 x USB2.0 Type‑A, 1 x USB3.2 Gen2 Type‑C (OTG)
• Serial ports: 3 x RS‑232/422/485 (isolated options)
• CAN: 1 x CAN FD (DB9)
• DIO: 8‑in / 8‑out isolated
• Power input: 9–36 V DC isolated; PoE PSE IEEE 802.3at (30W)
• Operating temp: -20 °C to +60 °C
• Dimensions / Weight: 130 x 68 x 150 mm / 2.5 kg
• Mounting: DIN‑Rail (default), Mini DIN‑Rail or Wall mount (optional)
• Enclosure: Aluminum & metal; Fanless
• Security: TPM 2.0
• OS support: Linux (NVIDIA JetPack 6.2)
• Certifications: CE, FCC
