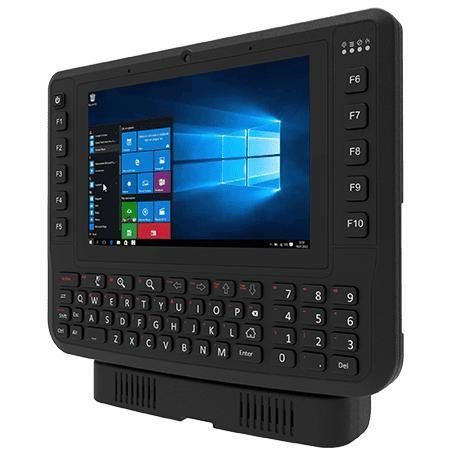

8" vehicle-mount computer FM08E

Intel® Atom x6413EMIL-STD-810HIP 65

Overview
The Winmate FM08E is an 8-inch Windows vehicle-mounted computer powered by Intel® Elkhart Lake processors, engineered for warehouse logistics, fleet management and forklift operations where ruggedness, long lifecycle and easy hardware integration are required.

Key features

• Intel® Elkhart Lake processor family (x6413E default)
• 8" 1280 x 800 PCAP multi-touch display (Hand / Gloves / Rain modes)
• Field-replaceable front panel for on-site service
• IP65 front waterproof and dustproof protection
• MIL-STD-810H certified for vibration and shock
• Wide operating temperature range: -30°C to 60°C

Certifications

• IP65
• MIL-STD-810H
• FCC
• CE

Product details
Rugged design
Fanless enclosure with internal shock mounts protects SSD and motherboard for reliable operation in vibration-prone vehicles.

PCAP touch screen
Projected capacitive multi-touch panel supports high sensitivity input in dirty environments and offers glove and rain modes for field use.

Performance and security
Configurable Intel Elkhart Lake CPUs (x6413E default) deliver improved CPU/graphics performance and hardware security (TPM 2.0) suitable for IoT edge applications.

Windows IoT Enterprise
Ships with Windows 10 IoT Enterprise LTSC (64-bit) by default; Windows 11 IoT Enterprise LTSC optional for long-term deployments.

Power and reliability
Integrated UPS battery (7.6V, 2S1P) provides minimum backup for safe shutdown; docking supports 10V–60V with ignition control.

Input and peripherals
Optional integrated QWERTY keypad with LED reading light, front 2MP camera and a broad set of I/O including USB Type-C, DB9 for USB, COM ports, Gigabit LAN, Micro SD and Dual-Nano SIM.

Accessories and mounting
Standard accessories: power cables, USB cable, antennas, dock with latch-lock key, stylus kit, quick start guide. Optional: RS232/CAN cables, IP65 LAN cable, combo antennas, WWAN antennas and adapters.

Mounting solutions (examples)

• RAM Clamp Mounts · RAM-D-247U-4 · Clamp base with 2.25” Ball · QTY 1
• RAM Arm · RAM-D-201U · Arm for 2.25” Ball (L: 8.375”) · QTY 1
• RAM Ball on device side · RAM-D-2461U · 75x75mm VESA with 2.25” Ball · QTY 1

Technical specifications

• Display: 8.0 inches, 1280 x 800, PCAP multi-touch, 800 nits, 1500:1 contrast
• CPU: Intel Atom x6413E (1.5GHz up to 3.0GHz) default; optional x6425E/x7433RE/x7835RE
• Memory/Storage: 4GB default (8/16GB optional); 128GB default (256/512GB optional)
• Environment: Operating temp -30°C to 60°C; Humidity 5%–95% RH non-condensing; IP65; MIL-STD-810H
• I/O: USB Type-C, DB9 (providing USB), 2 x COM (dock), Gigabit LAN (dock), Micro SD, Dual-Nano SIM, CANBus/Audio options
• Dimensions & weight: Tablet 268 x 214 x 32 mm; weight ~1.7 kg; Docking 202 x 245 x 52 mm
