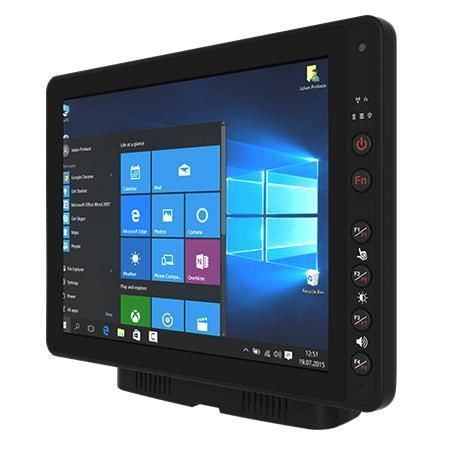

12.1" vehicle-mount computer FM12E

Intel® Atom x6413EMIL-STD-810HIP 65

Overview
The FM12E is a 12.1" vehicle-mounted computer engineered for warehouse logistics, fleet management and forklift operations. Designed for industrial and vehicle environments, it provides field-replaceable front panel serviceability, fanless cooling and long-term platform availability.

Key Features

• Intel® Elkhart Lake processor family (Intel Atom x6413E default; higher-performance options available)
• 12.1" XGA (1024 x 768) projected capacitive (PCAP) multi-touch display
• Field-replaceable front panel to minimize service downtime
• IP65 front protection; MIL-STD-810H shock & vibration compliance
• Wide operating temperature range for extreme environments

Certifications

• IP65 (front)
• MIL-STD-810H (shock & vibration)
• CE, FCC, IC (ICES-003)
• UL60950-1, EN60950-1
• PTCRB (for radio modules)

Display

• Size: 12.1 inches
• Type: Projected Capacitive Multi-Touch (PCAP)
• Resolution: 1024 x 768 (XGA)
• Brightness: 400 nits (standard); 800 nits (optional); high-brightness option reported
• Contrast Ratio: 1000:1
• View Angles: 89/89/89/89
• Touch Modes: Hand, Stylus, Glove

System Specification

• Processor (options): Intel Atom x6413E 1.5GHz (up to 3.0GHz) default; optional x6425E, x7433RE, x7835RE
• Memory: 4GB default; optional 8GB, 16GB
• Storage: 128GB M.2 SSD default; optional 256GB, 512GB
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise LTSC (64-bit) default; Windows 11 IoT Enterprise LTSC optional
• Wireless: WLAN and Bluetooth supported; optional WWAN (4G/LTE); GNSS (GPS/A‑GPS)
• Sensors: G‑Sensor, Ambient Light Sensor, Temperature Sensor

Camera

• Front camera: 2 MP

Environment & Ruggedness

• Operating humidity: 5% to 90% RH, non‑condensing
• Operating temperature: -30°C to 60°C
• Storage temperature: -30°C to 60°C
• Shock: MIL‑STD‑810H Method 516.8 Procedure I
• Vibration: MIL‑STD‑810H Method 514.8 Procedure I
• Impact: EN62262 IK07
• ESD: EN 61000‑4‑2 compliant, enhanced ±8kV contact & ±12kV air

Control & Buttons

• 1 × Power button
• 5 × Function buttons (programmable via Winset)

I/O Ports (overview)

• USB: 1 × USB Type‑C (tablet); docking DB9 connector providing 2 × USB 2.0 via adapter
• Serial: 2 × COM ports (via docking)
• LAN: 1 × Gigabit LAN (docking)
• Audio: Docking: 2 × speaker; Docking: CANBus or Audio option
• Storage: 1 × Micro SD card slot (tablet)
• SIM: 1 × Dual‑Nano SIM slot
• Indicators: 4 × LEDs (WLAN, UPS battery, HDD, Heater)
• Dock antenna connectors: SMA for WLAN (default), SMA for GPS/WWAN optional

Mechanical

• Dimensions: Tablet 307 × 225 × 41 mm; Docking 202 × 245 × 52 mm
• Docking housing: Aluminum alloy
• Weight: Tablet 1.7 kg; Docking 1.6 kg
• Mounting: RAM mount or VESA 75 × 75 mm pattern supported
• Cooling: Fanless design

Power & Battery

• Battery: 7.6V UPS battery (2S1P) — minimum ~30 minutes backup
• Power rating: Docking 10V–60V with ignition control; Tablet 12V DC in
• Typical consumption: 45W

Accessories (standard / optional)

• Standard: 5m power cable with fuse kit, 0.3m USB cable, 0.15m power converter cable, DC jack power cable, 84W adapter with cable, cable clamp kit, WLAN antennas ×2, quick start guide, external antenna bracket, dock latch key, stylus kit + screw
• Optional: RS232 cable, audio cable, CAN Bus cables, IP65 LAN cable, GPS & LTE combo antennas, magnetic combo antenna, WWAN antenna, mounting and adapter kits

Mounting Solutions (examples)
Mounting 1 – No Drill Solution
A | RAM Clamp Mounts - on the forklift | RAM‑D‑247U‑4 | Clamp base with 2.25" ball | QTY: 1
B | RAM Arm | RAM‑D‑201U | Arm for 2.25" ball (L: 8.375") | QTY: 1
C | RAM Ball on device side | RAM‑D‑2461U | 75 × 75 mm VESA with 2.25" ball | QTY: 1
C‑1 | Screw | - | SUS304 M5 × 12 mm | QTY: 5
C‑2 | Washer | - | M5 Washer | QTY: 5

Mounting 2 – Drill Solution
A1 | RAM round base mounts - on the forklift | RAM‑D‑202U | 3.68" round base with 2.25" ball | QTY: 1
A1‑1 | Screw | - | SUS304 M8 × 40 mm | QTY: 5
B | RAM Arm | RAM‑D‑201U | Arm for 2.25" ball | QTY: 1
C | RAM Ball on device side | RAM‑D‑2461U | 75 × 75 mm VESA with 2.25" ball | QTY: 1

Mounting 3 – Keyboard Mounting Installation
D | Winmate Keyboard adapter plate (PN: 821009131600) | - | 4 VESA holes to device and 4 AMPS holes to RAM ball | QTY: 1
D‑1 | Screw | - | SUS304 M5 × 20 mm | QTY: 5
D‑2 | Washer | - | M5 Washer | QTY: 5

Product Highlights / Summary
The FM12E offers a vehicle‑grade platform with modular docking I/O, wide voltage and ignition support, field serviceable front panel, optional high‑brightness display and certifications suited for industrial vehicle deployments.
