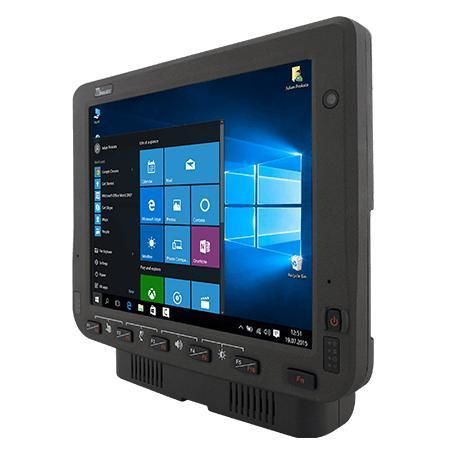

10.4" vehicle-mount computer FM10E

Intel® Atom x6413EMIL-STD-810GMIL-STD-810H

Overview
The Winmate FM10E is a 10.4-inch vehicle-mounted/mobile computer designed for field service, warehouse data capture and fleet operations. Built for integration in industrial vehicles, it provides a modular tablet-plus-docking architecture with IP65 front protection, MIL‑STD vibration/shock compliance and wide operating temperature options.

Key features

• Intel® Elkhart Lake platform (example: x6413E) with optional higher-performance Atom variants
• 10.4" 1024 x 768 display with projected capacitive (PCAP) multi-touch (hand, stylus, glove)
• Field-replaceable front panel for reduced service time
• IP65-rated front for dust and water protection
• Wide operating temperature range (e.g. -30°C to 60°C) and optional screen heater/defroster

Certifications

• MIL‑STD‑810G / MIL‑STD‑810H shock & vibration
• IP65 ingress protection
• CE, FCC, IC (ICES‑003)
• UL60950‑1 / EN60950‑1, PTCRB

Product details
Vibration and shock: reinforced enclosure and tested to MIL‑STD methods to ensure reliable operation in vehicle and industrial environments.

Display & touch: 10.4" XGA panel with PCAP multi-touch supporting glove and stylus modes; brightness options (400 nits default, 800 nits optional) for improved visibility.

CPU & OS: supports Intel Atom x6413E (default) with optional Elkhart Lake variants for higher performance. Default OS Windows 10 IoT Enterprise LTSC (64-bit); Windows 11 IoT Enterprise LTSC optional for long-life deployments.

Serviceability: front bezel and touchscreen are field-replaceable in supported configurations to minimize downtime and maintenance cost.

Accessories (standard & optional)
Standard items: USB cable, power converter cable, external antenna bracket, fuse kit, Wi‑Fi antenna, stylus kit, docking key, adapter, power cable with fuse, quick start guide.

Optional items: magnetic multi‑band combo antennas, GPS & LTE MIMO antennas, CAN Bus/RS232 cables, WWAN antenna, IP65 LAN cable and multiple mounting/cable options.

Mounting solutions (examples)
No‑drill solution: RAM clamp base (RAM‑D‑247U‑4) + RAM arm (RAM‑D‑201U) + RAM VESA ball plate (RAM‑D‑2461U) with associated screws and washers.

Drill solution: RAM round base (RAM‑D‑202U) + RAM arm + VESA ball plate and fasteners.

Keyboard mounting: Winmate keyboard adapter plate (PN: 821009131600) combined with RAM mounting hardware for integrated keyboard installations.

Technical specifications

• Model: FM10E
• Display: 10.4" (1024 x 768) PCAP, 400 nits default (800 nits optional)
• Processor: Intel Atom x6413E (1.5 GHz up to 3.0 GHz) default; optional x6425E/x7433RE/x7835RE
• Memory: 4 GB default (options 8 GB, 16 GB)
• Storage: 128 GB default (options 256 GB, 512 GB)
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise LTSC default; Windows 11 IoT Enterprise optional
• Wireless: WLAN/BT supported; WWAN 4G/LTE optional; GNSS supported
• Sensors: G‑sensor, light sensor, temperature sensor
• Camera: front 2 MP
• Environment: operating -30°C to 60°C (depending on configuration); humidity 5%–95% RH non‑condensing
• Shock & Vibration: MIL‑STD‑810H (Methods 516.8 / 514.8)
• Ingress: IP65; Impact: EN62262 IK07; ESD: EN 61000‑4‑2
• I/O: USB Type‑C (tablet), DB9 dock connector for USB2.0 x2, 2x COM (dock), 1x Gigabit LAN (dock), audio/speakers, microSD, dual‑Nano SIM, SMA antenna connectors on dock
• Mechanical: tablet 268 x 214 x 35 mm (≈1.7 kg); dock 202 x 245 x 52 mm (≈1.6 kg); RAM/VESA mount support; fanless
• Power: dock 10V–60V with ignition control; tablet 12V DC in; UPS battery 7.6V (2S1P) ≥ 30 min; typical consumption 45W
• Certifications: CE, FCC, IC, UL60950‑1, EN60950‑1, PTCRB
