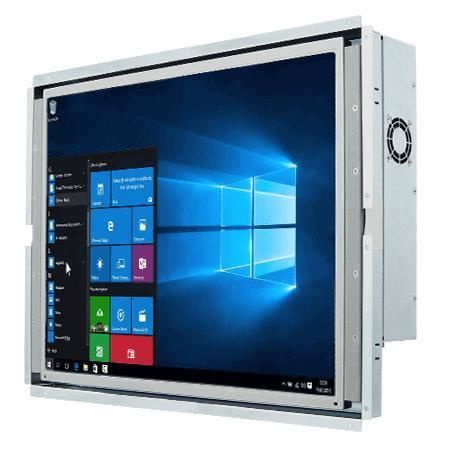

Resistive touch screen panel PC R17IAD7T-OFM1

LCDLED backlight17"

Overview
Winmate R17IAD7T-OFM1 is a 17-inch open frame panel PC engineered for machine control, factory automation and operator HMI. It supports Intel® Core™ i9/i7/i5/i3 (Alder Lake S) processors, DDR5 memory, integrated dual 2.5 Gigabit Ethernet and a wide set of I/O and mounting options for industrial integration.

Key features

• 17" 1280 x 1024 open frame panel PC
• 12th/selected 14th Gen Intel® Core™ Alder Lake S: i9 / i7 / i5 / i3 (multiple SKUs)
• 2 x SODIMM DDR5 4800MHz, up to 64GB (32GB per slot)
• Integrated dual 2.5 Gigabit Ethernet
• Multi-display support: DP 1.4a (DP++), HDMI 2.0b (optional)
• Multiple I/O: 4 x USB 3.2 Gen2x1, serial ports, audio
• 12 V DC power input; optional 12V 220W adapter

Certifications

• CE
• FCC

Technical specifications

• Display — Size: 17.0 inches; Resolution: 1280 x 1024; Brightness: 350 nits; Contrast Ratio: 1000:1; View Angles: 85/85/80/80; Active Area: 337.920 x 270.336 mm; Touch/Glass: Resistive touch optional or protection glass without touch optional
• System — Processor: Intel® Core™ i3-12100TE (default); optional i5-12500TE, i7-12700TE, i9-12900TE and selected 14th Gen T-series variants; Chipset: Intel® R680E; Memory: 2 x non-ECC SO-DIMM up to 64GB (32GB per DIMM)
• Storage — Default: 128GB SSD; optional: 256GB/512GB/1TB/2TB/4TB; optional 2 x SATA III for 2.5" SSD/HDD up to 2TB (RAID support)
• Ethernet & Networking — 2 x Intel® Ethernet Controller (2.5 Giga LAN RJ45)
• Security & OS — TPM 2.0; OS options: Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Linux Ubuntu 22.04 (Ubuntu: Wake on Touch not supported)
• Wireless — WLAN and Bluetooth support optional via M.2 module
• Mechanical — Dimensions: 410 x 329 x 83 mm; Weight: 4.5 kg; Mounting: Open frame (default), panel mount optional, VESA mount optional; Enclosure: Metal housing; Cooling: fan design
• Environment — Operating humidity: 10%–90% RH non-condensing; Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C
• IO Ports — USB: 4 x USB 3.2 Gen2x1 (10 Gbps, Type-A); Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; LAN: 2 x 2.5 Giga LAN RJ45; Video: 1 x DP 1.4a (DP++) up to 4096 x 2160@60Hz (default), 1 x HDMI 2.0b optional up to 4096 x 2160@60Hz; Audio: Mic-in, Line-out; Expansion: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2230 E-Key (Wi‑Fi)
• Power — Power input: 1 x 12V DC, DIN4 pin connector; Adapter: 12V 220W (accessory)
• Control & Buttons — 1 x Power button; 1 x Reset button
• Accessories — 100~240V AC to DC adapter, power cord, VESA screws
