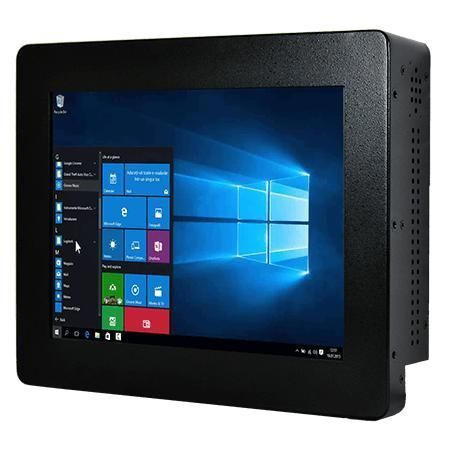

Resistive touch screen panel PC R08IE3S-CHT1WT

TFT LCD8.4"Intel® Celeron® N6211

Overview
Winmate R08IE3S-CHT1WT is an 8.4-inch chassis wide-temperature industrial Panel PC powered by Intel® Celeron® N6211. It is designed for machine control, factory automation and operator HMI applications that require long lifecycle availability and reliable operation in harsh environments.

Key Features

• 8.4-inch TFT SVGA display (800 x 600), 450 nits
• Intel® Celeron® Elkhart Lake N6211 processor (up to 3.0 GHz)
• 1 x SO-DIMM, up to 16 GB DDR4 (4 GB default)
• 2 x Intel® Ethernet controllers (2 x 2.5 Giga LAN RJ45)
• Front protection IP65; fanless metal chassis; wide operating temperature (-20°C to 60°C)
• Multiple I/O including SATA III, COM, USB3.2/USB2.0

Display & Touch

• 8.4-inch TFT SVGA, 800 x 600, 450 nits, contrast 600:1
• Viewing angles: 80/80/60/80; active area 170.4 x 127.8 mm
• Surface options: resistive touch (optional) or protection glass without touch

System & Storage

• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4 GB default, configurable to 8 GB / 16 GB (1 x SO-DIMM)
• Storage: 128 GB SSD default; optional 256 GB / 512 GB / 1 TB / 2 TB; 1 x SATA III for 2.5" drives; M.2 2242 B-Key
• TPM 2.0 supported; OS options include Windows IoT and Linux

Connectivity & I/O

• USB: 2 x USB 3.2 Gen2x1 (Type-A) and 4 x USB 2.0
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x 2.5 Giga LAN (RJ45)
• Video: HDMI 2.0 (optional)
• Audio: 2 x speakers; indicators: power and storage LEDs; brightness adjustment knob
• Expansion: M.2 2242 B-Key (SATA SSD), M.2 2230 E-Key (Wi‑Fi/BT)

Mechanical & Environmental

• Dimensions: 236 x 190 x 60 mm; Weight: 2.2 kg
• Enclosure: metal housing; cooling: fanless design
• Operating temperature: -20°C to 60°C; Storage: -25°C to 65°C
• Operating humidity: 30% to 90% RH, non-condensing; front protection: IP65

Certifications

• CE
• FCC

Accessories, OS & Security

• Included/optional accessories: 100~240V AC to DC adapter, power cord, VESA screws
• Power input: 12V DC (2.5φ DC jack), adapter 12V 50W
• OS options: Windows 11 IoT Enterprise / Windows 11 Pro / Windows 10 IoT Enterprise / Linux Ubuntu 22.04
• Security: TPM 2.0

Applications

• Suitable for system integrators, OEMs and industrial deployments for operator HMI, machine control and embedded automation

Technical specifications

• Model: R08IE3S-CHT1WT
• Display: 8.4" TFT SVGA (800 x 600), 450 nits
• CPU: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4 GB default, up to 16 GB (1 x SO-DIMM)
• Storage: 128 GB SSD default; optional up to 2 TB; SATA III / M.2 options
• LAN: 2 x Intel® Ethernet (2.5 Giga)
• USB: 2 x USB3.2 Gen2x1, 4 x USB2.0
• Serial: up to 4 x COM (RS232/422/485)
• Video: HDMI 2.0 (optional)
• Power: 12V DC (adapter 12V 50W)
• Dimensions / Weight: 236 x 190 x 60 mm / 2.2 kg
• Operating temp.: -20°C to 60°C; Front: IP65; Cooling: fanless
