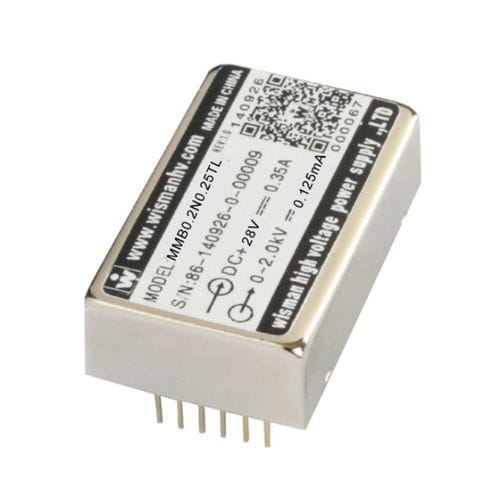

Printed circuit board power supply MMB
DC/DCsingle-outputstabilized

Printed circuit board power supply - MMB - Wisman High Voltage Power Supply - DC/DC / single-output / stabilized
Printed circuit board power supply - MMB - Wisman High Voltage Power Supply - DC/DC / single-output / stabilized
Add to favorites
Compare this product
Go to the Wisman High Voltage Power Supply website for more information

Characteristics

Mounting / format
for printed circuit boards
Type
DC/DC
Output
single-output, stabilized, adjustable
Network
single-phase
Protection
with short-circuit protection, with overload protection, with overcurrent protection, with overheating protection
Certifications
CE, ISO
Connection
with safety terminals
Applications
electronic equipment, for industrial applications, for telecommunications equipment, laboratory, for plasma cutting, for induction heating, photo-multiplier, for laser applications, for medical applications, for remote control, for anti-static equipment, for X-ray sources, for infrared detector, for marine applications, for electron guns
Other characteristics
programmable, high-power, high-voltage, low-noise level, high-performance, safety, high-frequency, modular, compact
Input voltage

12.5 V

Output voltage

Max.: 2 kV

Min.: 0.1 kV

Current

0.13 A, 0.17 A, 0.25 A

Power

0.25 W, 2 W

Description

Wisman’ s MMB series of high voltage 0.25W micro-modules that provide output voltage ranging from 100V to 2kV.MMB modules has miniaturization, ultra-low noise, high stability, ultra-low temperature coefficient, and six-sided shielding.All models offer external potentiometer or external reference voltage feed, over load protection. APPLICATIONS Mass spectrometry photomultiplier tubes (PMT) Solid state detectors Piezo crystal devices Ultrasonic transducers Microchannel plates (MCP) Spectroscopy Scintillation counters Electron multiplier detectors Nuclear instruments Electrophoresis Semiconductor testing DNA sequencing Radiation counter Electron and ion beams Electrostatic chunk High voltage Bias hipot testing Precision lenses Image intensifiers Semiconductor testing Chemical applications laboratory applications Industrial application supplies SPECIFICATIONS Specifications Ripple：100mV Stability: 0.01%/hr after an hour warm-up period Temperature Coefficient：25ppm/℃ Input Current： No load：60mA Full load：200mA Line Regulation：0.01%，typical Voltage Load Regulation：0.1%，typical Voltage Programming： By external voltage control(0 V to +2.5 V) Voltage control input impedance：100KΩ Output voltage rise time:50ms(0-99%) Temperature： Work Temperature： Commercial grade：-10℃ to +50℃(Case Temperature） industrial grade G：-25℃ to +65℃(Case Temperature） Top grade T：-40℃ to +95℃(Case Temperature） Storage Temperature： Commercial grade：-20℃ to +70℃；

Catalogs

MMB Series
MMB Series
2 Pages
