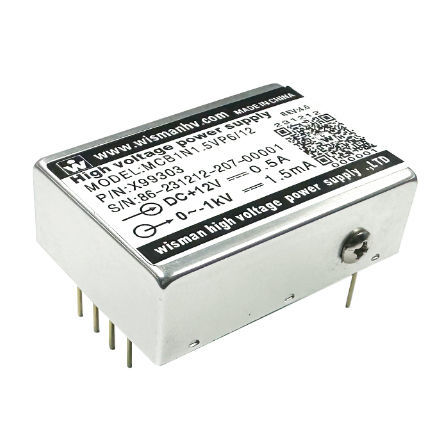

Printed circuit board power supply MCB

DC/DCsingle-outputsingle-phase

Wisman's MCB miniaturized module with low-noise and high-stability is intended for photomultiplier tubes, mass spectrometers, and electron microscopes. The price is competitive.MCB is a printed circuit board mounting high voltage power supply with small size, 70ppm temperature coefficient and high stability. It is six-shields and has strong anti-interference with the function of over-current ,short circuit and arc protection. APPLICATIONS APD(Avalanche Photo Diode) Electron Multiplier Hibrid Photo Detector Bar Code Scanners Bomb Detectors Cellular Electrophoresis Detectors E-chuck(Electrostatic Chuck) ESD(Electrostatic Discharge Testing) Flow cytometry FPD(Flat Panel Ditector) Gamma Cameras Geiger Counter GM Tubes(Geiger Mueller Tubes) Hi Pot Testing Ion Mobility Spectrometry(IMS) Ionizers Leak Detector PMT,MM,radiation counter Electron Beam/Ion Beam Mass spectrometry PhotoMultiplier Tubes Scintillators Electron Guns Ion Guns Nuclear Instruments Electrostatic lenses Spectroscopy Microchannel Plates SPECIFICATIONS: Line Regulation: 0.02%, typical Load Regulation: 0.02%, typical Output Voltage Control:By external controlling voltage (0 V to +6V) Controlling Voltage Input Impedance:100kΩ Output Voltage Rise Time:50ms (0-99%) Temperature: Working temperature: Commercial grade: -10℃ to +50℃ (housing temperature); Industrial grade G: -25℃ to +65℃ (housing temperature); Special grade T: -40℃ to +95℃ (housing temperature) Storage temperature: Commercial grade: -20℃ to +80℃; Industrial grade G: -25℃ to +95℃; Special grade T: -40℃ to +125℃
