Static mixer MM-Flex series
continuousgascompact

static mixer
static mixer
Add to favorites
Compare this product

Characteristics

Technology
static
Batch/continuous
continuous
Applications
gas
Other characteristics
compact, explosion-proof, proportional

Description

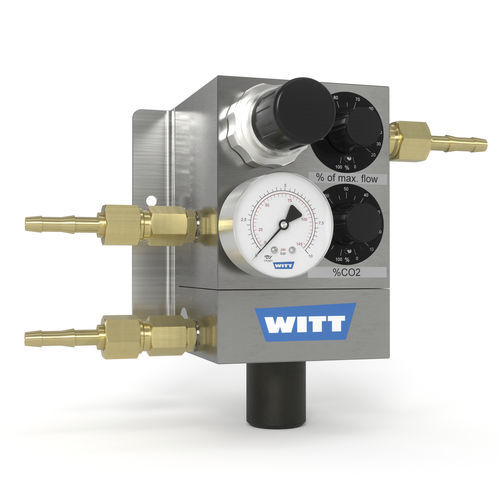

Very compact gas mixer for 2 gases (1 of which is flammable) and a variety of technical applications quality gas mixer from the world market leader also for discontinuous withdrawal gas mixture withdrawal from 0 up to 458 scfh economic easy to install wall mounting possible adjustable operating / outlet pressure independent of pressure and withdrawal fluctuations in the gas supply Gas mixing systems for 2 defined gases, designed for a variety of applications where an adjustable gas mixture is required. Capacity range up to approx. 458 SCFH. Benefits: low cost very compact design easy to install wall mounting possible adjustable operating / outlet pressure Easy operation: a proportional mixing valve with a control knob and %-scale provides infinitely variable mixture settings infinitely variable flow setting with scaled adjustment knob High process reliability: independent of pressure fluctuations in the gas supply independent of withdrawal fluctuations (in permitted range) Options: WITT-Pipe Couplers for pipe OD 8 mm Flame Arrestor in the outlet (for flammable gases) Shut off by solenoid valve in the outlet, 230 V AC or 24 V DC, also in Ex-version

Catalogs
