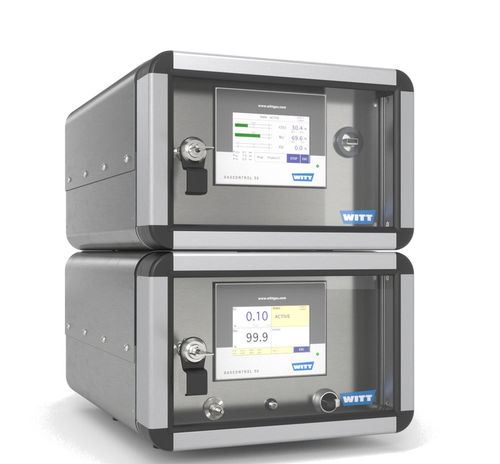

Dynamic mixer KM1500-3 FLOW
continuousgasproportional

dynamic mixer
dynamic mixer
dynamic mixer
Add to favorites
Compare this product


Characteristics

Technology
dynamic
Batch/continuous
continuous
Product type
gas
Other characteristics
proportional
Flow

Min.: 25 l/min
(6.6043 us gal/min)

Max.: 500 l/min
(132.08603 us gal/min)

Empty weight

35 kg
(77.2 lb)

Description

Electronic gas mixer for 3 gases for optimised flow regulation quality gas mixer from the world market leader measured data storage infinitely variable mixture settings via touchscreen constant, accurate mixture when large or very small volumes are needed independent of pressure fluctuations monitoring of the gas supply by pressure switch alarm signals are given if the set limits are exceeded and a potential free contact operates Gas mixing systems for 3 defined gases, designed for a variety of industrial applications. The KM-FLOW uses electronic mass flow controllers (MFC) instead of conventional proportional valves for mixing gases. Combined with an analyser results a maximisation of the quality accompanied by minimisation of the gas consumption. This efficient workflow can be ideally realised with MFC. Capacity range 10 up to 500 Nl/min for each gas line. Ensures a constant, accurate mixture when large or very small volumes are needed. Benefits: simple to operate via touchscreen freely programmable gas mixtures can be selected at the press of a button or by bar code scanner simplified analysis of results by digital data bus optimised gas consumption helps to reduce costs, cause user definable gas quantity for each different product (only in combination with an analyser) low maintenance easy to read display data transfer via USB port administration of product names for individual positioning measured data storage user level with different access authorisation up to 3 mixers cascadable. One unit with display and others as black-box realised High Process Reliability: data log
