Gas pressure regulator unit 684NG

gas pressure regulator unit
gas pressure regulator unit
gas pressure regulator unit
Add to favorites
Compare this product


Characteristics

Product
for gas

Description

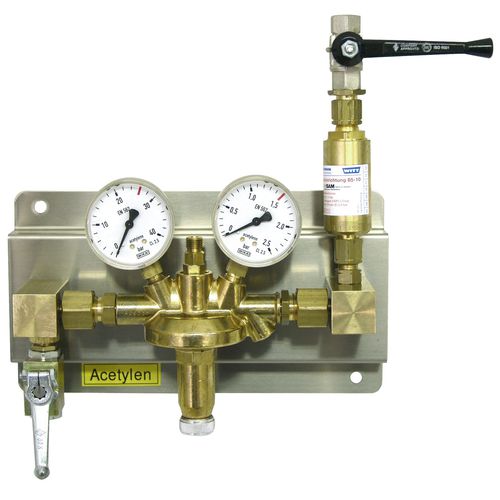

WITT Pressure regulating station 1x1 or manually changeable 2x1 for central gas supplies. Every pressure regulating station 100% tested. Benefits: pressure regulating station completely mounted and tested quick and easy wall mounting compact design (e.g. suitable for cylinder cabinets) pressure regulating station according to DIN EN ISO 14114 pressure regulator according to DIN EN ISO 7291 Operation / Usage: The pressure regulating station automatically ensures continuous gas supply and control of a pipeline, which is connected with pipeline outlets and reduces the risk of accidents. Supplying from single cylinders is no longer necessary. Assembly: (1x1) pressure regulating station 684NG (2x1) pressure regulating station 684NG manually changeable consisting of: 2/2-way-high pressure ball valve DN6 1x or 2x dependant on option 1x pressure regulator with blow off valve 1x safety device 85-10 according to DIN EN ISO 5175 against back flow and flashback 1x ball valve in the outlet DN8; G 3/8 F completely mounted and tested on stainless steel plate Options: automatic quick acting shut-off device HDS17 according to EN ISO 15615 flexible hose standards (BAM certified) for connection of pressure regulating station with gas supply (cylinder, gas cylinder manifolds, bundles, ...), adapter suitable for bundle connection screw connection for pipe (soldering end, WITTFIX, welding end) extension module for connection of further single cylinder or cylinder bundles with pressure regulating station information board with concise instructions instruction plate according to the gas Approvals Company certified to ISO 9001
