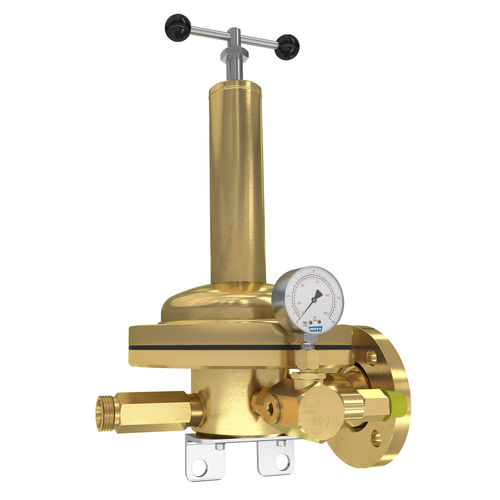

Acetylene pressure regulator ADR 150F

springsingle-stagebrass

Manifold pressure regulator for acetylene up to 5,297 scfh for a stable working pressure and a safe workplace regulation of high flows from cylinder batteries / bundles setting of required pipeline pressure is adjusted by the spindle valve requires no additional pilot gas Powerful manifold pressure regulator to regulate high flows at acetylene cylinder manifolds or bundles (packs). Benefits: integrated relief valve (according to ISO 7291) integrated relief valve and outlet pressure gauge requires no additional pilot gas Operation / Usage: The ADR 150F for acetylene is used to reduce high pressure to working pressure in acetylene supplies as required according to EN 14114. Function: The ADR 150F is a spring-loaded pressure regulator. The required pipeline pressure is adjusted by the spindle. Maintenance: It is recommended that a leak check concerning the atmosphere is conducted at regular intervals. Repairs are only to be carried out by the manufacturer. Approvals: Company certified according to ISO 9001 and PED 97/23/EC Module H CE-marked according to PED 97/23/EC, category III, Safety accessories
