Power transformer LL series

distributioncast resinindustrial

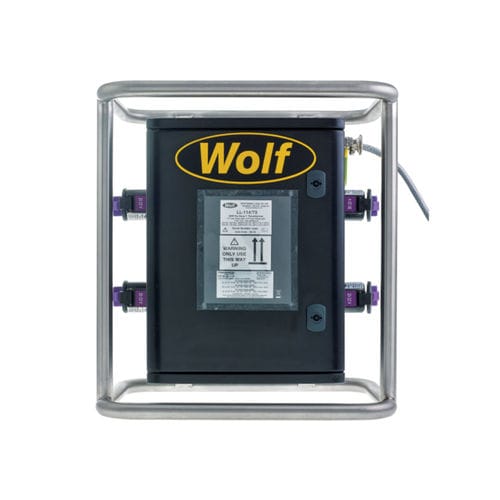

The Wolf ATEX 250VA Transformer is CE marked to the ATEX directive and IECEx certified with a maximum output of 250VA in an ambient temperature of up to +55°C and is group II, category 2 equipment for use in Zones 1 & 2 potentially explosive gases, vapours and mists, where temperature class T4 is permitted, and Zones 21 & 22 potentially explosive dusts where a maximum surface temperature of 130°C is permitted. Operating from 230V or 110V to 24V and 230V to 110V, the transformers are intended for use with the Wolf range of temporary ambient and task lights and with ancillary equipment for maintenance tasks. As standard, Transformers are supplied with a 15 metre input cable fitted with an ATX plug and with four ATX output sockets fitted to the enclosure. The Transformers are available in either a GRP or Stainless Steel enclosure, sealed to IP66, enabling use in wet and dusty conditions. In addition, a stainless steel outer protective skid makes the unit stronger and easier to handle for temporary installations ensuring that it can withstand the harshest of environments.
