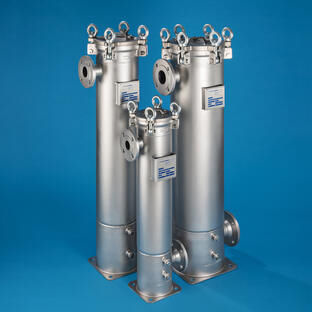

Cartridge filter housing WTGDS

for liquidsstainless steel

WTGDS Stainless Steel Cartridge Filter Housing with casted socket and hinged cover convince through their compact, space-saving design. And another advantage is that because of the special design of the socket-bottom together with the horizontaloutlet the housings can be drained completely. WTGDS cartridge filter housings are manufactured in different assembly sizes. The assembly sizes differ from one another in the amount and length of filter cartridges that can be built inside. So there can be built 3, 5 or 8 filter cartridges in the length from 10“ to 40“ inside of a housing. An important feature of the WTGDS cartridge filter housings is the fact, that the position, type and size of the inlet and outlet connections are variable and are only manufactured at time of and according to customer specification. WTGDS Cartridge filter housings can be supplied with filter cartridges with double open end (DOE), with filter cartridges with adapter and flat endcap (Code 0) or with adapter and endcap with fin (Code 5). Options for all sizes are a pressure-gauge-vent-unit and a magnet insert for presepa-ration of ferrite particles.
