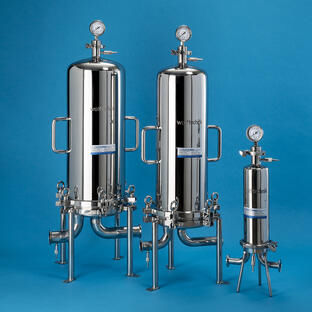

Cartridge filter housing WS

for liquidsstainless steelsanitary

WS-Sanitary-Housings were especially developed fort he application of sterile and ultra clean production lines. The special requirements of the pharma-, cosmetic-, beverage- or electronic-industry regarding suitable housings for sensitive processes can be found in the WS-Sanitary-Housing construction. The housing fastening of the small 01WS-Sanitary-Housings comes with a v-clamp while the taller 03WS-, 05WS- and 07WS-Sanitary-Housings are equipped with swing-bolts and ring nuts. WS-Sanitary-Housings are made of AISI316L (1.4404) and inside and outside mirror-polished to surface roughness of Ra < 0,6μm (inside) / 0.8μm (outside). The standard connections for inlet and outlet are TriClamp connectors, different connections can be produced on request. All WS-Sanitary-Housings are provided with a diaphragm pressure gauge with TriClamp, a Sanitary-vent valve and a Sanitary-drain-valve located on the inlet side. Suitable filter cartridges to be installed in the WS-Sanitary-Housings are filter cartridges with bayonet adapter and fin (Code 7). For better cleaning the bayonet connection plate can be removed in the 03WS-, 05WS- and 07WS-Sanitary-Housings. The standard series of the WS-Sanitary-Housings ranges from a filter housing for one single filter cartridge in the length of 10“, 20“ and 30“ to filter housings for 7 filter cartridges in den lengths of 10“ to 30“. Additional sizes and lengths on request.
