Friction clutch and brake 106 electromagneticpneumatichydraulic
Add to favorites
Compare this product
Characteristics
- Type
- friction
- Operation
- electromagnetic, pneumatic, hydraulic
- Other characteristics
- low-inertia, cooled
- Torque
Min.: 382 Nm
(281.748741 ft.lb)Max.: 91,600 Nm
(67,560.692874 ft.lb)- Rotational speed
Min.: 770 rpm
(4,838.0527 rad.min-1)Max.: 5,290 rpm
(33,238.0503 rad.min-1)
Description

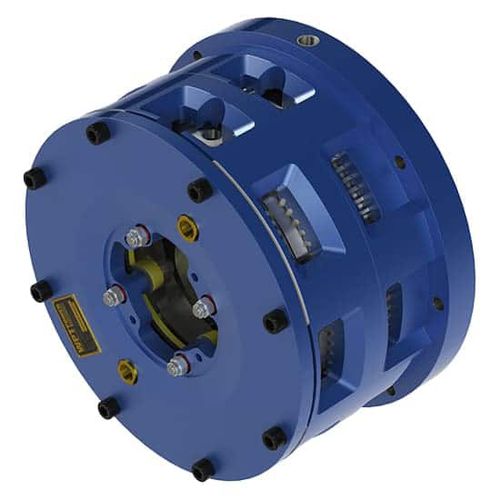

Steel Water Cooled Brake
WPT® Steel Water Cooled Brakes (Steel WCBs) are designed for high-heat applications, such as coil processors and high-cycle press / shear lines. The unique design of the steel water jackets allows for the rapid transfer of heat to an external cooler or recirculation system. This increased heat transfer capabilities allow the Steel WCB to operate in continuous slip applications. WPT’s Steel WCBs are available in 1, 2, or 3 plate construction with diameters ranging from 6 through 30 inches.
Steel Water Cooled Brake features
High duty cycle
Maximum heat transfer
Predictable preventative maintenance
Durable steel water jacket design
Low-inertia drive plate design
