Current Transformer (CT) analyzer UHV-103APotential/Voltage Transformer (PT)laboratoryfor testing
Add to favorites
Compare this product
Characteristics
- Measured entity
- Current Transformer (CT), Potential/Voltage Transformer (PT)
- Application domain
- laboratory, for testing
- Measured value
- resistance
- Configuration
- benchtop, portable
- Mode of use
- automatic
- Other characteristics
- digital, calibration, control
Description
Overview
Key features
Technical specifications
Effect
Advantage

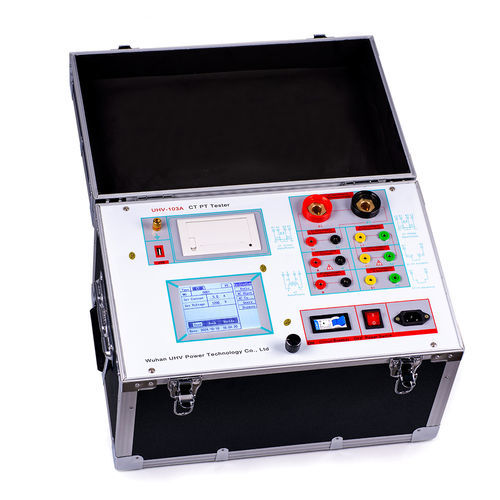

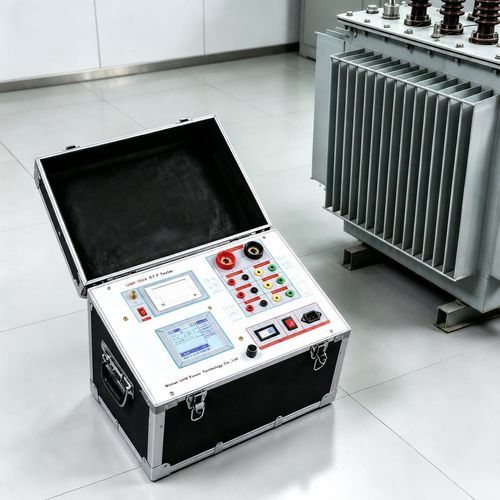

- The UHV-103A is a portable tester for automatic examination of protective and metrological current transformers (CT) and potential transformers (PT), suitable for laboratory and field testing.
- Delivers excitation characteristic, transformation ratio, polarity, degauss, 5% and 10% error curves, secondary circuit checks, power-frequency AC withstand and secondary load measurements.
- Equipped with a graphical large-screen LCD, built-in micro fast printer and USB data export for on-site printing and PC report generation.
Key features
- Standalone operation: completes all test items without additional auxiliary equipment; supports CT bushing testing and transformer-specific polarity tests.
- Automatic determination of CT/PT excitation inflection point and automatic generation of 5% and 10% error curves.
- Complies with GB1207, GB1208 and related standards.
- Stores up to 3000 test sets retained after power loss; supports USB flash disk export; exported data readable on standard PC and usable to generate Word reports.
- Built-in micro fast printer and intuitive on-screen prompts for efficient field use.
Technical specifications
- Operational Power Supply: AC220V±20V, 5060Hz
- Equipment Power Supply Output Waveform: Sine Wave
- Single Machine Output Voltage of Excitation Characteristic: 0~1200V
- Excitation Current Set:0~20A
- Single Machine Output Current of Transformation Ratio Test:0~600A
- CT ratio measurement range :5~25000A/5A(5000A/1A)
- PT ratio measurement range : 1~500KV
- Load Range: 5~500VA
- Resistance measurement range: 0.1~300Ω
- Error: ≤0.5%(0.3%*Reading+0.2%*Range)
- Operating Temperature: -10℃~+40℃
- Relative Humidity:
- Altitude: ≤1000m
- Overall Dimension(Length*Width*Height): 450*350*350(mm)
- Weight: ≤28Kg
Effect
- Transformer is an important component of the power system, which converts high voltage and high current into low voltage and low current for measurement, protection, and control. In order to ensure the normal operation of the transformer, it is necessary to conduct regular inspections and tests, and the transformer volt ampere ratio polarity comprehensive tester is an important tool to complete this task.
Advantage
- Only simple numerical settings are needed: set the rated parameters of the transformer. The instrument will automatically record data throughout the entire process and calculate and display the polarity and volt ampere characteristic curves of the transformation ratio, eliminating the tedious labor of changing wires, manually adjusting voltage, manually recording, organizing, and drawing curves. The use of extremely simple operation and wiring methods to achieve the measurement of transformers greatly reduces work intensity and improves work efficiency, making it convenient for on-site transformer measurement work; Quick, simple, precise, and convenient.
