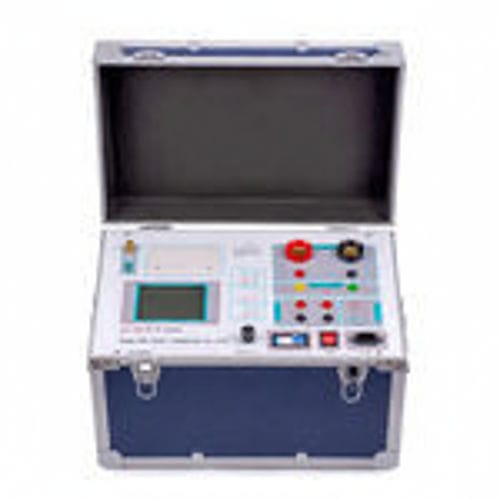

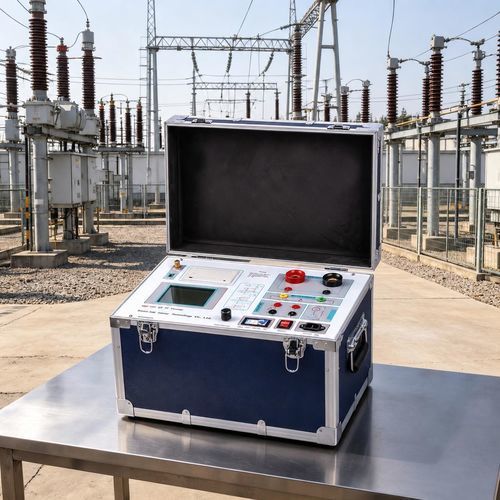

Current Transformer (CT) analyzer UHV-103Potential/Voltage Transformer (PT)for electrical networkslaboratory
Add to favorites
Compare this product
Characteristics
- Measured entity
- Current Transformer (CT), Potential/Voltage Transformer (PT)
- Application domain
- laboratory, for electrical networks, for testing
- Measured value
- voltage
- Configuration
- portable
- Mode of use
- automatic
- Other characteristics
- with data logger, data acquisition, with built-in printer
Description
Overview
Key features
Technical specifications
Data and reporting
Applications
Safety precautions
- Automatic tester for protective and metrological current transformers (CT) and potential/voltage transformers (PT) up to 35 kV, suitable for laboratory and field testing.
- Single-unit design integrating excitation, measurement, printing and data storage for on-site verification.
Key features
- Supports testing of CT and PT (protective and metrological).
- Complies with GB 20840.3-2013, GB 20840.2-2014 and related standards.
- All test items can be completed without external auxiliary equipment.
- Built-in micro-fast printer for direct on-site printing of results.
- Intelligent controller and simple operation workflow.
- Large-screen LCD with graphical display interface.
- Automatic determination of CT/PT excitation (inflection) point values per regulations.
- Automatic generation of 5% and 10% error curves.
- On-board memory for 3000 test records retained after power off.
- Supports U-disk data transfer; data readable on a standard PC and exportable to WORD reports.
Technical specifications
- Model: UHV-103.
- Operational power supply: AC 220V ±20V, 50–60 Hz.
- Equipment output waveform: sine wave.
- Single-unit excitation output voltage: 0–1000 V.
- Excitation output current (adjustable): 0–20 A.
- Single-unit output current for transformation-ratio test: 0–600 A.
- CT ratio measurement range: 5 25,000 A / 5 A (supports 5000 A / 1 A).
- PT ratio (T) measurement range: 1 500 kV.
- Accuracy / Error: ≤ 0.5% (0.2% * Reading + 0.3% * Range).
- Operating temperature: -10 ℃ +40 ℃.
- Relative humidity: < 90% RH.
- Altitude: ≤ 1000 m.
- Overall dimensions (L × W × H): 450 × 280 × 260 mm.
- Weight: ≤ 30 kg.
Data and reporting
- On-board memory stores up to 3000 test datasets with retention after power off.
- U-disk support for easy transfer of test data to a PC.
- Generated data compatible with standard PC software; WORD report generation supported.
- Built-in micro-fast printer for immediate on-site reports.
Applications
- Laboratory and field testing of protective and metrological CT and PT (≤35 kV).
- Portable design and integrated functions for efficient on-site verification and maintenance workflows.
Safety precautions
- The grounding terminal on the instrument panel should be reliably grounded during use.
- Do not connect an external voltage regulator during the automatic boost test for volt ampere characteristic testing. (External regulator and external booster are not the same concept)
- The working power supply of the instrument is~220V or~380V, and the socket is installed on the side panel.
- Do not block the fan vent on the side panel of the instrument to prevent overheating.
- If the instrument is not used for a long time, please store it in a dry and ventilated place and power it on once a month.
