Electronic leak detector XP-1Arefrigerant gasSF6refrigerant
Add to favorites
Compare this product
Characteristics
- Technology
- electronic
- Detected fluid
- refrigerant gas, SF6, refrigerant
- Other characteristics
- portable, vacuum, sniffing, wireless, ultra-sensitive, with integrated display
- Applications
- for industry, for small leaks
Description
Overview
Main features
Applications
Specifications
Alternative names

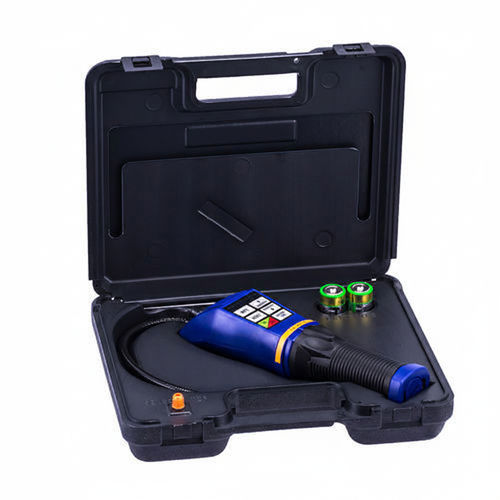

- The XP-1A Handheld SF6 Gas Leak Detector is a portable, battery-powered instrument for rapid, sensitive detection of SF6 leaks near SF6-insulated GIS, switchgear and other electrical equipment.
Main features
- Microprocessor control with advanced digital signal processing (DSP).
- Three-color visual display for clear indication of detection level and status.
- Seven-level sensitivity adjustment with up to 64× enhancement.
- Touch keyboard for intuitive operation and on-the-fly sensitivity tuning.
- Automatic battery test and battery voltage indication.
- Detects R134a, R12, R22 and other halogen refrigerants (including SF6 detection capability).
- Vacuum mechanical pump sampling to provide positive draft for the probe.
- Gradient (trend) function to track leak evolution and aid localization.
- Wireless, portable design powered by two alkaline batteries (DC 3V).
- 35 cm flexible stainless steel probe rod (total probe length 35.5 cm) for access in confined areas.
Applications
- Localization of SF6 leaks on GIS, circuit breakers, switchgear and other SF6-insulated electrical equipment.
- Field service, maintenance inspections and leak verification during commissioning.
Specifications
- Power supply: DC 3V (two alkaline batteries).
- Maximum sensitivity: R12, R22, R134a indicated at 14 g/year (manufacturer note).
- Sensitivity limit: < 3 g/year for halogen refrigerants.
- Probe usage time: approx. 20 hours.
- Operating temperature: 0℃ – 52℃.
- Battery life: approx. 30 hours under normal use.
- Working mode: continuous, unlimited.
- Response time: instantaneous.
- Reset time: 1 s.
- Warm-up time: approx. 2 s.
- Weight: 560 g.
- Dimensions: 229 × 65 × 65 mm.
- Probe rod length: 35.5 cm.
Alternative names
- SF6 Gas Leak Tester
- sf6 leak detector
