Insulation tester UHV-615

voltagehigh-voltageelectric

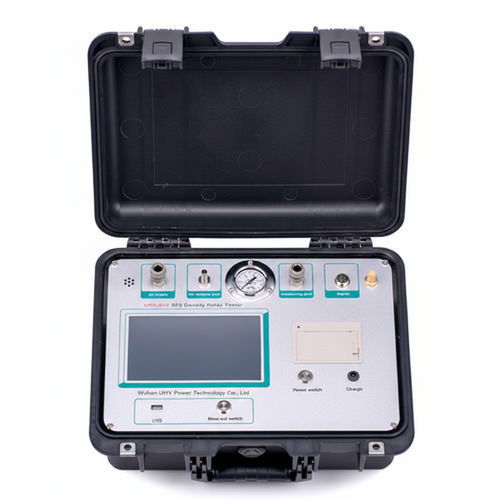

The UHV-615 SF6 density relay tester is an intelligent calibration instrument for SF6 density relays. Core components are imported to ensure high integration, measurement precision, repeatability and field reliability.

Overview / Intended use

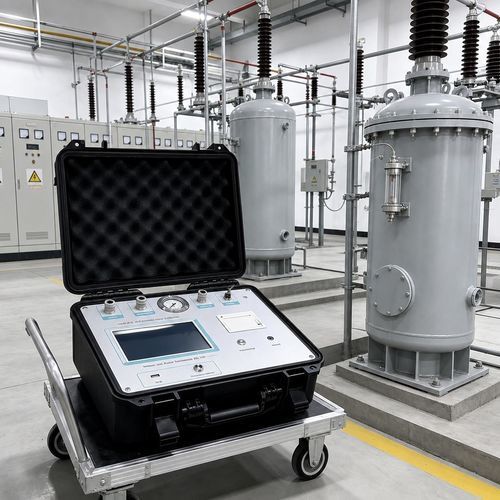

• Intended use: calibration and on-site testing of SF6 density relays and associated SF6 gas equipment.
• Design: compact integrated case, portable and easy to carry; key parts use imported components to ensure measurement accuracy.

Features

• Strong anti-interference capability: electric-field induction immunity up to 2 mA (50/60 Hz), enabling reliable on-site measurements in high-voltage substations.
• High short-circuit current: typical short-circuit current 10 mA, suitable for testing large-capacity and high-inductance components.
• Wide resistance measurement range with high resolution for precise readings.
• Selectable high-voltage output levels with smooth adjustment from 0 V up to the selected voltage (0.1–5 kV).
• Acousto-optic reminders and timing functions to assist absorption ratio and polarization index recording.
• Durable, wear-resistant external materials and a robust integrated housing for field use.

Technical specifications (selected)

• Output voltage levels (selectable): 0.1 kV, 0.25 kV, 0.5 kV, 1 kV, 2.5 kV, 5 kV.
• Test voltage accuracy: ±(5% + 10 V).
• Short-circuit current: typical 10 mA.

Range and accuracy (resistance measurement)

• 20 MΩ (range 0.01 – 19.99 MΩ) — accuracy ±(5% + 3 d).
• 200 MΩ (range 5.0 – 199.9 MΩ) — accuracy ±(5% + 3 d).
• 2000 MΩ (range 50 – 1999 MΩ) — accuracy ±(5% + 3 d).
• 20 GΩ (range 0.5 – 19.99 GΩ) — accuracy ±(5% + 3 d).
• 200 GΩ (range 5.0 – 199.9 GΩ) — accuracy ±(10% + 3 d).
• 2000 GΩ (range 50 – 1999 GΩ) — accuracy ±(20% + 10 d).

Basic parameters

• Anti electric-field interference ability: 2 mA (50/60 Hz).
• Timing and alarm: stopwatch up to 19 min 59 s (20 min cycle); audible reminders at preset sampling points; resistance reading hold and continuous alarm if reading invalid or below range.
• Display: three 3½-digit LCD meter heads showing test voltage, resistance and time.
• Power supply: built-in rechargeable lithium battery DC 15 V; AC adapter port for charging (50/60 Hz).
• Operating environment: temperature -20 °C to +40 °C; relative humidity 20%–90%.
• Dimensions (L × W × H): 315 × 240 × 180 mm.
• Weight: 5.5 kg.

Additional media / Documents

• Product includes user manual and calibration certificate (PDF available).
• Product demonstration and introduction videos available.

Model / Typical specifications

• Model: UHV-615.
• Output voltage levels: 0.1 kV, 0.25 kV, 0.5 kV, 1 kV, 2.5 kV, 5 kV.
• Test voltage accuracy: ±(5% + 10 V).
• Short-circuit current: typical 10 mA.
• Resistance measurement ranges & accuracies: see Range and accuracy section above.
• Anti-interference: 2 mA (50/60 Hz).
• Display: three 3½-digit LCD meters.
• Power: built-in rechargeable Li battery (DC 15 V) with AC charging port.
• Operating conditions: -20 °C to +40 °C; 20%–90% RH.
• Dimensions: 315 × 240 × 180 mm; Weight: 5.5 kg.
