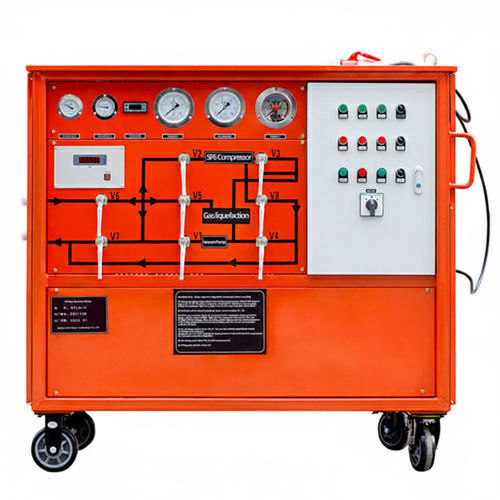

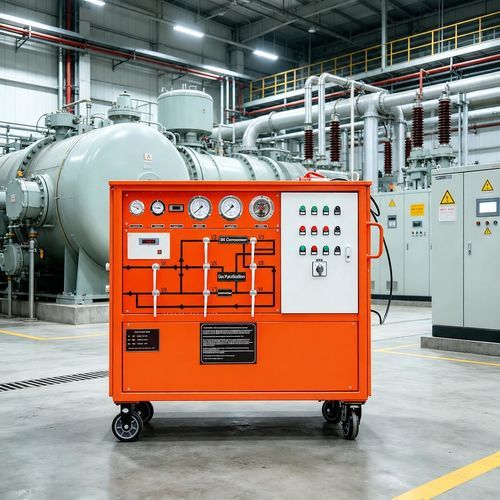

Compact SF6 gas service cart UHV-625

mobilefor gaseous and liquid SF6 storagefor SF6 gas recovery

The UHV-625 SF6 gas recovery, filling and storage tester is a mobile specialist unit for recycling, purifying, filling and storing SF6 used in SF6-insulated electrical equipment. It supports vacuuming, charging, purification and recovery operations and integrates compressor, vacuum and filtration systems in a compact hand-push chassis.

Main component performance parameters

• Power AC: 400 V (three-phase, automatic phase sequence conversion)
• Rated maximum gas storage pressure (20 °C): ≤ 4 MPa
• Ultimate vacuum: ≤ 10 Pa
• Device vacuum stability: at 133 Pa maintained 24 h, vacuum increased by 400 Pa
• SF6 recovery compressor: France Manewrop, pumping rate 7 m³/h
• Vacuum pump configuration: 2X-4 (domestic bipolar vacuum pump), vacuum pumping speed 15 m³/h
• Adaptation inlet pressure for recovery start (20 °C): 0 ~ 1.0 MPa
• Final recycling pressure for electrical equipment (20 °C): ≤ 50 kPa
• Oil after recovery: < 10 µg/g
• Mean annual leakage rate: < 1 %
• Mean continuous trouble-free operation time: ≥ 1000 h; cumulative MTBF: ≥ 5000 h
• Noise level: machine ≤ 75 dB(A)
• Theoretical accumulator capacity: 50 kg; SF6 tank: 50 L (carbon steel)
• Cooling method: air cooling; liquefaction compressor listed: Donper
• Freezing tank capacity: 50 L
• Recycle gas moisture after processing: ≤ 60 ppm vol; after recovery oil: 10 ppm vol
• Drying/filtering: vacuum heating activated regeneration; filter particle rating: 0.02 μm using HASON three-stage technology (USA)
• Inflatable initial pressure: ≤ 133 Pa; inflatable final pressure: 0.8 MPa; inflatable rate ≥ 5 m³/h
• Gasification: electric heating with automatic temperature control; vehicle type: hand-push; dimensions (mm): 1450 × 810 × 1200; total weight: 545 kg

Condensed parameter list

• Model: SF6 GAS RECLAIMER (UHV-625)
• Vacuum pumping speed: 15 m³/h; ultimate vacuum: 10 Pa
• SF6 recovery compressor: 7 m³/h; typical working pressure noted ~2.5 MPa
• Filter particle rating: 0.02 μm; SF6 purity after processing: ≥ 99.9 %
• Water after processing: ≤ 60 ppm vol; oil after recovery: 10 ppm vol
• Tank: 50 L carbon steel; gauge: pointer; valve sealing: sealed butterfly design to minimize leaks

Features

• Integrated adsorption-filter system removes SF6 impurities: moisture, decomposition products, oil and particles.
• Compact integrated design for easy on-site movement and operation (hand-push mobile chassis).
• High-efficiency, low-maintenance three-stage filter system to ensure recovered SF6 quality.
• Built-in phase protector to avoid phase-reversal errors; quality-brand electrical components used.
• Durable casters and protective coating to ease transport and reduce maintenance.
• Air-cooled system requiring no external water source; temperature protection enables operation down to −20 °C.
• On-board vacuum-heating regeneration for desiccant, avoiding frequent replacement.
• Ball valves with automatic compensation sealing and electromagnetic valve power-failure protection to prevent oil backflow to vacuum pump or motor.

Technical characteristics / specifications

• Brand: UHV Power
• Commercial designation / model: UHV-625
• Main role: SF6 recovery, purification, storage and filling for SF6 electrical equipment
• Power supply: AC 400 V, three-phase
• Rated maximum storage pressure: ≤ 4 MPa; working reference pressure: 2.5 MPa
• Ultimate vacuum: 10 Pa; vacuum pumping speed: 15 m³/h
• Compressor pumping rate: 7 m³/h (France Manewrop)
• SF6 tank capacity: 50 L (carbon steel); total weight: 545 kg; dimensions: 1450 × 810 × 1200 mm
• Noise: ≤ 75 dB(A); cooling: air cooling; filter/dryer: original USA components, HASON three-stage technology
