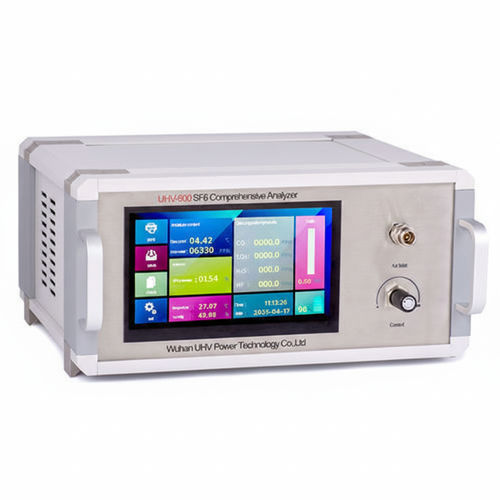

SF6 analyzer UHV-600for electrical networkscircuit breakerconcentration
Add to favorites
Compare this product
Characteristics
- Measured entity
- SF6
- Application domain
- for electrical networks, circuit breaker
- Measured value
- concentration, purity, dew-point
- Configuration
- portable
- Mode of use
- automatic, manual, semi-automatic
- Other characteristics
- multi-parameter, with data logger, data acquisition, battery-powered, combined, with built-in printer
Description
Overview:
Key Features of SF6 Analyzer
Technical specifications:
FAQ for SF6 Comprehensive Analyzer
Why choose us as the supplier of SF6 comprehensive testing equipment?
- The UHV-600 SF6 Comprehensive Analyzer is a portable integrated analyzer for SF6 gas combining dew point (humidity), purity and decomposition-product analysis for on-site inspection of GIS and high-voltage switchgear.
Key Features of SF6 Analyzer
- Integrated measurement of SF6 dew point, SF6 purity and decomposition products (H2S, SO2, CO) in a single unit.
- Protection functions: user‑settable overvoltage and overcurrent protection, zero‑start and flashover (system detuning) protection to safeguard the instrument.
- Lightweight, battery‑powered design for field portability and easy on‑site operation.
- Three operating modes — fully automatic, manual, and automatic tuning with manual boost — to adapt test speed and strategy to site conditions.
- On‑board data storage and local printing; stored records are indexed with serial numbers for easy identification and retrieval.
- Automatic frequency scan with user‑configurable start point; LCD displays scan curve to facilitate locating resonance points.
- DSP platform for modular function expansion and firmware upgrades; user‑friendly human‑machine interface with multi‑language support (Chinese/English default, others customizable).
- Built‑in series resonance parameter calculator for quick computation of inductance, capacitance, frequency, resonant high‑voltage current and cable capacitance.
Technical specifications:
- Purity
- Test range: 0% – 100%
- Test accuracy: ±0.5%
- Test time:
- Dew point
- Measuring range: -80℃ to +20℃
- Measuring precision: ±0.5℃ (−60℃ to +20℃)
- Response time (at +20℃): 63% in 5 s; 90% in 45 s (for −60℃ to +20℃)
- Response time (+20℃ to −60℃): 63% in 10 s; 90% in 240 s
- H2S
- Measuring range: 0 – 200 ppm
- Minimum detectable value: ≤0.1 ppm
- Measuring precision: ±0.5%
- Stability range: 0 – 200 ppm
- Repeatability: ≤2%
- SO2
- Measuring range: 0 – 200 ppm
- Minimum detectable value: ≤0.1 ppm
- Measuring precision: ±0.5%
- Stability range: 0 – 200 ppm
- Repeatability: ≤2%
- CO
- Measuring range: 0 – 1000 ppm
- Minimum detectable value: ≤0.1 ppm
- Measuring precision: ±0.5%
- Stability range: 0 – 1000 ppm
- Repeatability: ≤2%
- Intake pressure: 0 – 1.0 MPa
- Flow: 0.01 – 1.00 L/min
- Ambient temperature (sensor): -40℃ to +60℃
- Ambient humidity: 0 – 100% RH
- Power
- AC 100 – 240V, 50/60 Hz
- Built‑in high‑capacity lithium‑ion rechargeable battery
- Battery performance: 8 hours charge provides >8 hours operation
- Working temperature: -30℃ to +70℃
- Size: 280 × 140 × 300 mm
- Weight: 6.8 kg
FAQ for SF6 Comprehensive Analyzer
- 1. What are the main parameters measured by SF6 comprehensive tester?
- SF6 comprehensive tester is usually used to simultaneously measure SF6 gas:
- Humidity (dew point)
- Purity (SF6 concentration)
- Decomposition products (SO ₂, H ₂ S, CO, etc.)
- Through one test, the SF6 gas status can be comprehensively evaluated, helping users determine the insulation performance and operational safety of the equipment.
- 2. Does the SF6 comprehensive tester test result comply with IEC international standards?
- Yes. Our SF6 comprehensive tester is designed according to the power industry and international standards, which can meet the maintenance and testing requirements of substations, GIS equipment, circuit breakers, and power equipment, and provide high-precision measurement results.
- 3. Will SF6 gas be emitted during the testing process of SF6 comprehensive tester?
- No. The equipment is equipped with a gas recovery system, which can recover the tested SF6 gas into an internal gas storage device, avoiding direct gas emissions, meeting environmental requirements, and reducing gas loss costs.
- 4. Is the operation of SF6 comprehensive tester complicated?
- Easy to operate. The equipment adopts a color touch screen and a Chinese/English operating interface, with a high degree of automation in the testing process. On site personnel can proficiently use it after simple training.
Why choose us as the supplier of SF6 comprehensive testing equipment?
- We have rich experience in the research and export of power testing equipment, and our products have been widely used in power companies, substations, equipment manufacturers, and third-party testing institutions. The equipment adopts high-quality core sensors and strict quality control system to ensure accurate and reliable test results. At the same time, we can provide professional pre-sales selection support, fast delivery, OEM customization services, and comprehensive after-sales technical support to help global customers obtain more efficient and stable SF6 gas detection solutions.
