IMU840

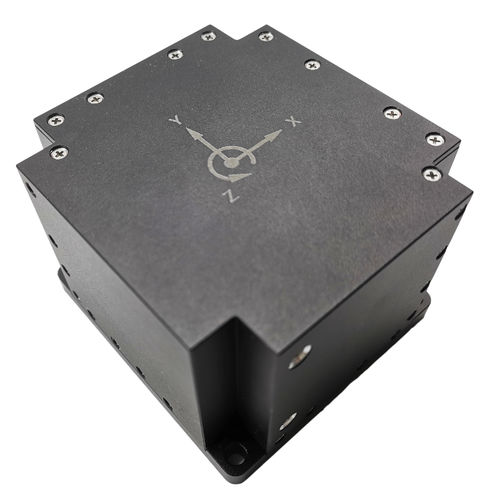

Fiber optic gyro Inertial Measurement Unit IMU840

Product Introduction:

BW-IMU840 is a fiber optic gyro inertial measurement unit with high reliability,which can measure the angular velocity and acceleration velocity of the moving carrier. The acceleration and angular velocity deviations are estimated by a 6-state Kalman f

Technical Specifications

Input voltage(Vdc): +9~+36
Power(W): 12
Data output: RS-422
Size(mm): ≤L90×W90×H90
Weight(kg): 1
Connector: J30J-15ZKP

BW-IMU840 uses highly reliable MEMS accelerometers and gyroscopes,and ensure measurement accuracy through algorithms,meanwhile,the seal design and strict process ensure that the dynamic parameters of the carrier such as the angular velocity,accélération and attitude can be accurately measured under harsh conditions.Through various compensations such as nonlinear compensation ,quadrature compensation and drift compensation,the error source of BW-IMU840 can be greatly eliminated,and the product accuracy level can be improved. The BW-IMU840 is equipped with digital interface that can be easily integrated into the user' s System.

•High sampling frequency
•Température compensation,the unique calibration techniques and methods
•Small size, L90xW90xH90mm

•Unmanned vehicle
•Aéroplane mapping
•Satellite antenna
