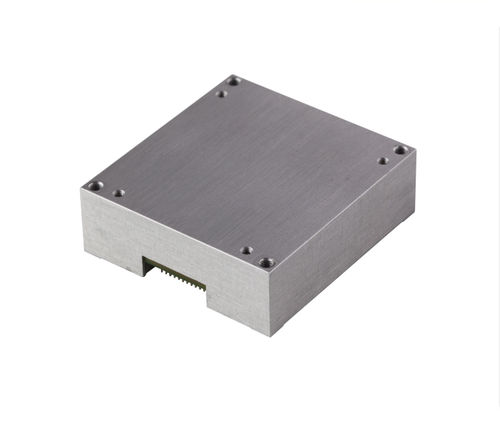

IMU BWS688B

The Inertial Measurement Unit (IMU) is a compact, high-shock-resistant device designed for precise navigation, control, and dynamic measurement of moving carriers. It integrates a ​triaxial MEMS gyroscope​ and ​triaxial accelerometer​ with advanced error compensation algorithms (including temperature, installation misalignment, and nonlinear corrections). Processed data is output via a customizable SPI interface, while built-in sensors (magnetometer, barometer) enable comprehensive environmental sensing . Core Features: High-Precision Sensors​ Gyroscope: ±450°/s range, 1.2°/h Allan variance bias stability Accelerometer: ±18g range, 20µg Allan variance bias stability Magnetometer: ±8 gauss range for yaw angle accuracy . Robust Environmental Adaptability​ Operates in ​−40°C to +85°C​ with factory-calibrated temperature compensation. Survives ​2000g shock​ and vibration-intensive industrial environments Competitive Advantages​ ​Cost-Effective Industrial Solution: Balances MEMS performance with reliability for harsh conditions. ​Multi-Sensor Fusion: Integrated magnetometer and barometer enable 10-axis sensing . ​Low Power Consumption: Efficient 3.0–3.6V power design extends battery life in mobile applications.
