IMU IMU - IMU527
{{requestButtons}}

Description

IMU527

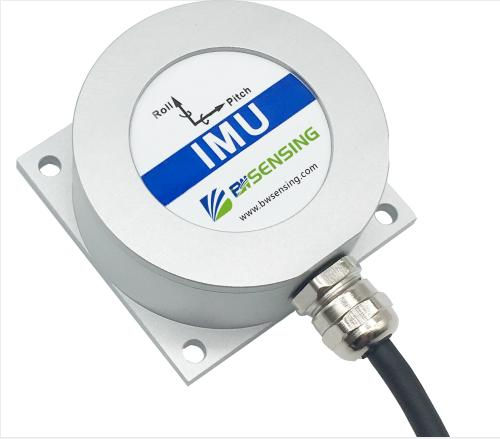

High-performance Inertial Measurement Unit IMU527

Product Introduction:

BW-IMU527 is a high-performance inertial measurement unit measures the attitude parameters ot the motion carrier.

Technical Specifications

Accuracy: 0.1°

Resolution: 0.01°

Tilt margin: Pitch ±90º, Roll ±180º

Supply Voltage: 9-35V DC

Zero instability: 10 °/h

Bias stability: ±0.1 mg

Dimension: L103.8 × W55.4× H26(mm)

Vibration resistance: 2000g

If garbled characters appear on this manual when you preview online, please download it. This problem could be solved. We recommend Adobe Acrobat Reader DC. If still cannot, please contact us (sales@bwsensing.com), we will send you the newest manual via email. Thank you for your understanding.

BW-IMU527 uses highly reliable MEMS accelerometers and gyroscopes,and ensure measurement accuracy through algorithms, meanwhile, the seal design and strict process ensure that the dynamic parameters of the carrier such as the angular velocity、acceleration and attitude can be accurately measured under harsh conditions. Through various compensations such as nonlinear compensation, quadrature compensation, temperature compensation and drift compensation, the error source of BW-IMU527 can be greatly eliminated, and the product accuracy level can be improved. The BW-IMU527 is equipped with digital interface that can be easily integrated into the user's system.
