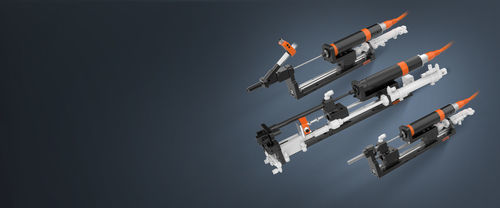

Robotic screwing unit

modularvacuumfor screw assembly

Product overview
Structural simplification of the module body and gun head reduces overall size and weight. A cylinder pressure regulating method is used to make tightening down-pressure adjustment more convenient and reliable. The design removes the external spring to reduce wear-part maintenance and offers front or back installation to suit various field layouts.

Product advantages

• Cylinder pressure adjustment for reliable and repeatable downforce regulation.
• Optimized structure for stable screw suction-pipe support and compatibility with optional functions for complex conditions.
• Front or rear installation possible to match integration constraints.
• Vacuum module equipped with a large-capacity vacuum filter to extend maintenance intervals and provide stable vacuum levels.
• Reduced module and nozzle size for lower weight; external spring eliminated to reduce wear-part upkeep.
• Lightweight 12 Nm series adapted for collaborative robots; overall torque coverage extended up to 200 Nm.
• Maximum screw cap diameter expanded to 27 mm; interference-avoidance stroke extended to 300 mm.

Product structure
Illustrations of the module components and nozzle assemblies are provided to show the internal layout, mounting interfaces and vacuum/screw pneumatic connections.

Product parameters

• Traditional blow screw module system

  • Standard/Combination screw, Normal nozzle — Weight 3.5–3.9 kg, Max cap Ø 4–15 mm, Torque range 0.3–20 Nm
  • Swivel Arm, Normal nozzle — Weight 3.0–3.3 kg, Max cap Ø 4–15 mm, Torque range 0.3–20 Nm
  • Hexagon head, Normal nozzle — Weight 3.7–4.5 kg, Max cap Ø 4–15 mm, Torque range 0.3–20 Nm
• Normal vacuum module system

  • Standard/Combination screw, Normal nozzle — Weight 5.8–6.7 kg, Max cap Ø 4–15 mm, Torque range 0.3–20 Nm
  • Swivel Arm — Weight 6.0–6.9 kg, Max cap Ø 4–15 mm, Torque range 0.3–20 Nm
  • Hexagon head, Normal nozzle — Weight 6.9–7.1 kg, Max cap Ø 11–15 mm, Torque range 0.3–20 Nm
• Conventional pick-up module system

  • Standard/Combination screw, no nozzle — Weight 3.9–4.3 kg, Max cap Ø 4–15 mm, Torque range 0.3–20 Nm
  • Standard/Combination screw, clamp nozzle — Weight 6.4–7.4 kg, Max cap Ø 11–15 mm, Torque range 0.3–20 Nm
  • Hexagon head, no nozzle — Weight 4.4–6.6 kg, Max cap Ø 11–15 mm, Torque range 0.3–20 Nm

Technical specifications

• Torque range: 0.03–200 Nm (module family coverage).
• Cylinder pressure regulating method for tightening down-pressure adjustment.
• Compact module body and shortened nozzle to reduce weight and improve accessibility.
• Vacuum module with large-capacity vacuum filter for extended maintenance cycle and stable vacuum value.
• Optional front or rear installation for flexible integration.
• Maximum screw cap diameter up to 27 mm.
• Interference-avoidance stroke up to 300 mm.
• 12 Nm lightweight series suitable for collaborative robots.
• External spring eliminated to reduce wear-part maintenance.

Notes
The above parameter values are reference values; actual test results and final specifications prevail.
