Electronic screwdriver

torqueautomatic

Overview

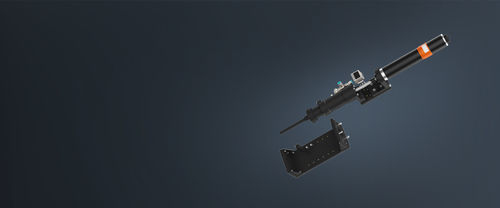

Quick-change module for automatic screwdriver stations designed to handle multiple screw types by using interchangeable female heads. The unit is compatible with intelligent screwdrivers and can be integrated with industrial robots, three-axis gantry systems and other mobile mechanisms; suitable for use with receiving tables in continuous production lines that require frequent tool changes.

Product Highlights

• High adaptability: accepts tightening tools from multiple manufacturers.
• Compatible with robots with or without force-control capability.
• Flexible deployment: supports a wide range of application scenarios and strong expandability.
• Optimized lightweight structure: module weight as low as 2.2–2.3 kg (including propulsion mechanism, excluding the tool and cables) for use with 5 kg-class robots.
• Flexible model switching: one module supports multiple screw types for co-linear assembly processes.
• Error prevention: circumferential limiting on the fixed base reduces jamming; a reflective sensor monitors the female connector status in real time.

Product Parameters
Version Type | Operating Mode | Collision Avoidance Height | Pick-up Method | Weight (excluding screwdriver & cables) | Size | Cap Diameter Range
Lightweight version – 15 Nm | Force Control Mode | 60/100/150/200 mm | Vacuum-Magnetic Clamp | 2.2 kg | 398.5×90.5×95 mm | ≤15 mm
Regular version – 15 Nm | Position Control Mode | 60/100/150/200 mm | Vacuum-Magnetic Clamp | 3.6 kg | 570×121×95 mm | ≤15 mm
Regular version – 35 Nm | Position Control Mode | 60/100/150/200 mm | Vacuum-Magnetic Clamp | 6.5 kg | 726×155×100 mm | ≤15 mm

Technical specifications

• Torque range: 0.3–35 Nm
• Available pick-up (collision avoidance) heights: 60, 100, 150, 200 mm
• Pick-up method: Vacuum-Magnetic Clamp
• Cap diameter range: ≤15 mm
• Lightweight version (15 Nm): Force Control Mode; weight 2.2 kg; size 398.5×90.5×95 mm
• Regular version (15 Nm): Position Control Mode; weight 3.6 kg; size 570×121×95 mm
• Regular version (35 Nm): Position Control Mode; weight 6.5 kg; size 726×155×100 mm
• Module weight note: optimized structure down to ~2.3 kg including propulsion mechanism (excluding the tool)
• Suitable for integration with robots, three-axis systems and other mobile mechanisms
• Designed for multi-screw types and production lines with frequent type changes
