Manual tightening module

semi-automatichandheldelectric

Product Overview
The integrated handheld tightening module is designed for use with torque arms at manual or semi-automatic stations to automate screw feeding and tightening, reducing operator handling. When paired with an intelligent electric torque screwdriver, it enables tracking of screw count and tightening results. Overall torque range indicated: 0.3~15Nm.

Product Advantages

• Compact structure with simplified pneumatic and electrical layout for straightforward installation and fixation to a force arm.
• Active bit stop and active screw-suction stop hold screws faster and more securely, improving cycle reliability.
• Pneumatically adjustable tightening pressure minimizes reaction force during operation.
• Replaceable nozzle sleeve for easy maintenance and rapid changeover.
• Automatic screw blowing removes manual screw removal steps, speeding up operator workflow.
• Stable screw suction prevents interference during tightening.
• Integration with intelligent torque screwdrivers and torque arms allows control and traceability of tightening quantity, sequence and quality in production.

Product Structure

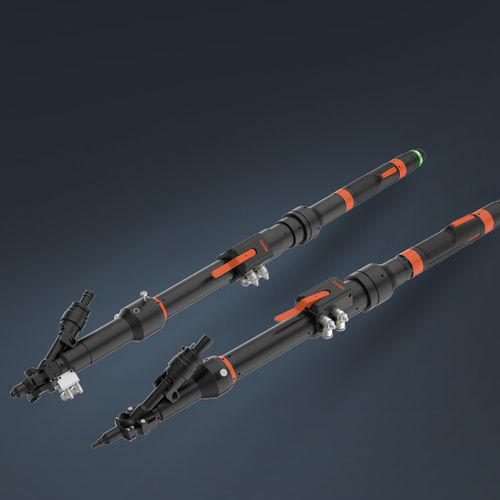

Illustrative product structure image on the page shows the integrated handheld assembly with vacuum and nozzle arrangement for screw feeding and tightening.

Product Parameters

• Module type | Torque range | Working condition type | Stroke of vacuum tube
• Blow Screw - Handheld | 0.6~6Nm | Semi-automatic or manual station | L30 / L50mm
• Normal Vacuum - Handheld | 1~12Nm | Semi-automatic or manual station | H60 / H100mm

Technical specifications

• Product name: Handheld Tightening Module
• Overall torque range (banner): 0.3~15Nm
• Module variants and torque ranges: Blow Screw - Handheld: 0.6~6Nm; Normal Vacuum - Handheld: 1~12Nm
• Working condition: Semi-automatic or manual station; adaptable to different product working conditions
• Stroke of vacuum tube: L30/50mm (Blow Screw); H60/H100mm (Normal Vacuum)
• Pneumatic-controlled adjustable tightening pressure to minimize reaction force
• Active bit stop and active suction-tube stop for faster, more secure screw handling and improved durability
• Convenient nozzle replacement; nozzle sleeve removable after disassembly
• Supports automatic screw blowing to eliminate manual screw removal
• Can be integrated with torque arms and intelligent electric torque screwdrivers for tracking screw count, tightening results and controlling tightening quantity, sequence and quality
