Parts measuring machine

for production linesfor the automotive industryhigh-precision

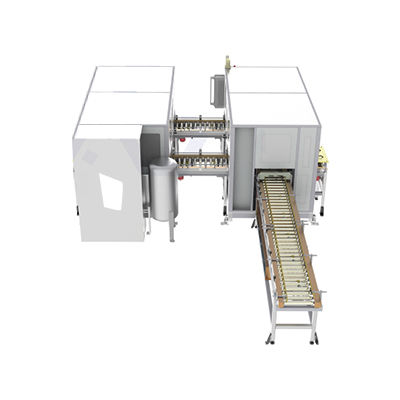

Cylinder head measuring machine realizes the loading on the production line through automatic conveyor line, automatic location of workpiece and all the measurements of items. It also has the following functions: automatic identification of the type of workpiece in accordance with the existing 2D code; automatic identification and warning of the unqualified products and transportation of the unqualified out of the line; SPC analysis; data memory and saving. Technical parameters Measurement principle: Comparison measurement. Displacement sensor is used to measure the difference between the measured parts and the calibration parts, and then the relative sizes of the measured parts are calculated. Measurement takt time: ≤40 seconds, under normal condition and operation Measurement position technology level: resolution: 0.0001mm, measurement accuracy: ±0.001mm, GRR: ≤10%. Technical characteristics •High measurement precision •High measurement accuracy •High measuring efficiency •Greatly reduce labor costs
