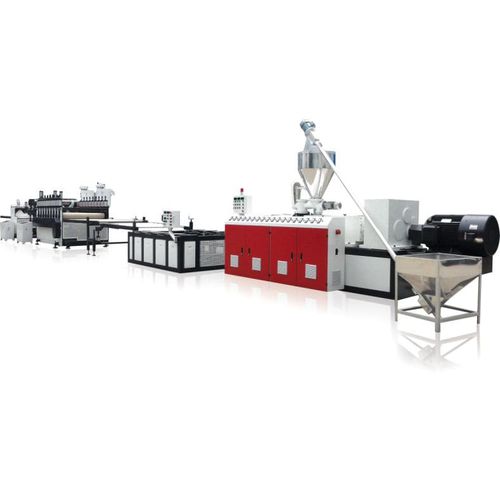

Plastic sheet extrusion line SJSZ 80/156
for PVCfor WPCmultilayer

plastic sheet extrusion line
plastic sheet extrusion line
plastic sheet extrusion line
Add to favorites
Compare this product


Characteristics

Type
plastic sheet
Treated material
for PVC, for WPC
Other characteristics
multilayer, twin-screw
Applications
for foam sheets

Description

WPC Wood Platic Flooring Extrusion Line MAIN TECHNICAL PARAMETERS PVC foam board production line brief: Control system:Synchronized Siemens PLC touch screen. Extruder main motor:Siemens Standard Transducer: ABB Contactor:Schneider Relay: OMRON Other electric components: CHNT/DELIXI Temperature controller: OMRON. 1. SJSZ80/156 Double Screw Extruder Extruder Capacity 400Kg/h Main motor 75kw AC Central Height 1050mm Screw and barrel Material SKD-II, nitriding Nitride thickness 0.6~0.7mm Screw diameter 80/156mm Rotated speed 1~34.7rpm Heater &Cooler Heater Cast-aluminum heater Heating zones 5 Barrel heating power 34kw (4/4/8/8/12) Temperature range 50-300℃ Barrel cool way Heat transfer oil and fan Fan power 0.25kw Degassing part Pump Water ring vacuum pump Pump power 2.2kw Vacuum degree 0-0.075 mpa Feeding Part Motor 1.5kw Speed Adjust Transducer Gear Box Gear Hard tooth surface (20GrMOLA) Safeguard of screw with safeguard device for screw 2. Extrusion Die Heating zones - 7 Heating power - 5kw*7zones Width - 1350mm For products size - 1220MM/3-20MM Polishing precision - 0.015-0.02um of die lip stream surface, and 0.02-0.03um of other stream surface Electroplated layer - Die head stream surface hard chrome plating treated, thickness 0.05-0.06mm, hardness 60-65Rockwellc, and outside surface chrome thickness 0.03-0.04mm Temperature oil tank control system - Motor power - 1.5kw Oil temperature range - 50-200 °C Heating power - 9kw

VIDEO
