Hydraulic fitting S20441-TRW series
screw-in45° anglefemale

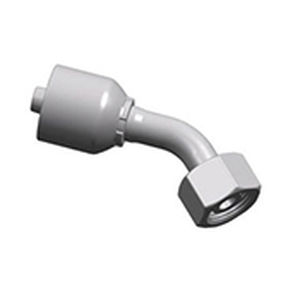

Hydraulic fitting - S20441-TRW series - WUXI SAMWAY CO.,LTD - screw-in / 45° angle / female
Hydraulic fitting - S20441-TRW series - WUXI SAMWAY CO.,LTD - screw-in / 45° angle / female
Hydraulic fitting - S20441-TRW series - WUXI SAMWAY CO.,LTD - screw-in / 45° angle / female - image - 2
Add to favorites
Compare this product

Characteristics

Applications
hydraulic
Attachment
screw-in
Configuration
45° angle
Gender
female
Other characteristics
for hoses
Diameter

Min.: 6 mm
(0.236 in)

Max.: 38 mm
(1.496 in)

Description

45°ELBOW METRIC FEMALE 24°CONE O-RING L.T. ISO 12151-2─DIN 3865 Technical Parameters: 代 号螺纹 T软 管 HOSE BORE管子直径尺寸 DIMENSIONS PART NO.THREAD T公称内径 DN标号 DASHTUBE O. E.LHS1 S20441-14-04TRWM14X1.5604841.717.917 S20441-16-04TRWM16X1.560410391919 S20441-16-05TRWM16X1.580510421819 S20441-18-05TRWM18X1.580512462222 S20441-18-06TRWM18X1.510061247.521.522 S20441-22-08TRWM22X1.51308155624.627 S20441-26-08TRWM26X1.513081860.527.932 S20441-26-10TRWM26X1.51610186828.832 S20441-30-1OTRWM30X21610226828.536 S20441-30-12TRWM30X219122272.830.236 S20441-36-12TRWM36X219122874.331.641 S20441-36-16TRWM36X225162883.634.241 S20411-45-16TRWM45X22516358434.650 S20411-45-20TRWM45X232203599.839.150 S20441-52-20TRWM52X2322042100.940.160 S20441-52-24TRWM52X238244211545.360 Note：1、For use with braided hoses。 2、If use with spiral hoses,hose fitting series number is S20442-XX-XXTRW。
