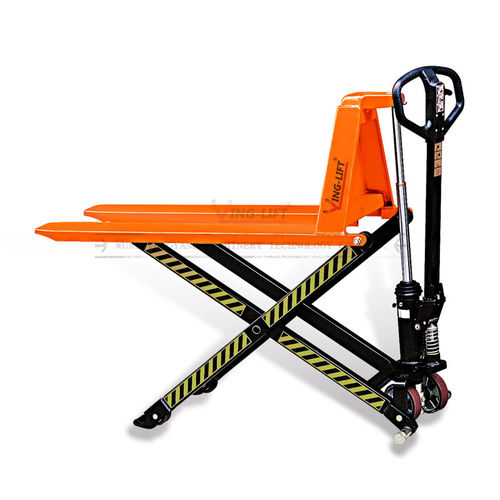

Scissor pallet truck YLD5210
hydraulichandhigh-lift

Scissor pallet truck - YLD5210  - Wuxi Tongyang Machinery Technology Co., Ltd. - hydraulic / hand / high-lift
Scissor pallet truck - YLD5210  - Wuxi Tongyang Machinery Technology Co., Ltd. - hydraulic / hand / high-lift
Scissor pallet truck - YLD5210  - Wuxi Tongyang Machinery Technology Co., Ltd. - hydraulic / hand / high-lift - image - 2
Scissor pallet truck - YLD5210  - Wuxi Tongyang Machinery Technology Co., Ltd. - hydraulic / hand / high-lift - image - 3
Scissor pallet truck - YLD5210  - Wuxi Tongyang Machinery Technology Co., Ltd. - hydraulic / hand / high-lift - image - 4
Add to favorites
Compare this product

Characteristics

Operation
hand, hydraulic
Other characteristics
lift, steel, scissor, high-lift, transfer, quick-lift
Load

1,000 kg, 1,500 kg
(2,204.62 lb, 3,306.93 lb)

Lifting height

Min.: 85 mm
(3.3 in)

Max.: 800 mm
(31.5 in)

Fork length

1,100 mm, 1,140 mm
(43.31 in, 44.88 in)

Fork width

520 mm, 680 mm
(20.5 in, 26.8 in)

Weight

105 kg, 112 kg, 118 kg, 125 kg
(231.49 lb, 246.92 lb, 260.15 lb, 275.58 lb)

Description

Manual High Lift Scissor Truck ◆New design with larger piston offer you real 1000kg and 1500kg capacity ◆Character: Extremely easy to pump and light make this unit very suitable as combined hand pallet truck and lift table. ◆Quick-lift as standard with automatic transfer to normal lifting with loads over 150kg. ◆Automatic descending speed control by a uniquely hydraulic valve,the decending speed always keeps same regardless the truck with or without load. lt will prevent cargo damage from fast descending. ◆Front support legs and adjustable stabilizers extended to the floor automatically when the forks reach a height of 420mm, to ensure maximum stability and optimum braking. ◆Ergonomic warm handle offers you simple and comfortable operation. ◆Heavy duty design: 4mm steel plate fork frame and larger lift piston ensure the truck to reach rated capacity. ◆Conforms to EN1757-4.
