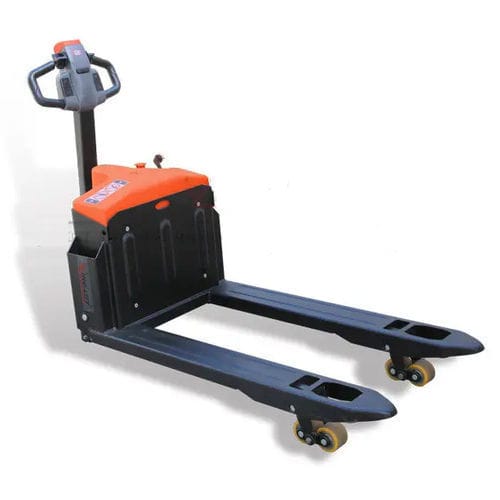

Electric pallet truck YLT20-15ET2

24 Vhandlingtransport

Electric Pallet Truck ◆Perfect upgrade of reliability and easy-maintenance; ◆Optimized wire harness layout lowers twist failure rate; ◆Innovative design,easy for battery replacement; ◆Upgraded emergency switch ensures safety; ◆Strong cover for driving wheel ensures the safety of the operator; ◆Upper-installed charger, better heat-exhausting, higher charging efficiency. • Operator type : Walkie • Load center : c (mm) : 600 • Load distance (Raised/ Lowered) : x (mm) : 883/946 • Wheelbase : y (mm) : 1268/1205 • Axle loading, laden operator/load side : kg : 550/1155 • Axle loading, unladen operator/load side : kg : 180/25 • Tyre type : PU/ PU • Tyre size, operator side : Ø210×70 • Tyre size, load side : 2× Ø80×60 • Wheels, number operator/load side (x=drive wheels) 1× /4 • Tread, load side : b11 (mm) : 410 • Height of tiller arm in operating position, min/ max : h14 (mm) 820/1170 • Fork height, lowered : h13 (mm) 85 • Overall length : l1 (mm) : 1620 • Length to face of forks : l2 (mm) : 470 • Overall width : b1/ b2 (mm) : 560 • Fork spread, min/ max : b5 (mm) : 560 • Ground clearance, center of wheelbase : m2 (mm) 35 • Aisle width, 1000×1200 pallet crossways : Ast (mm) 1739 • Aisle width, 800×1200 pallet lengthways : Ast (mm) 1939 • Outer turning radius : Wa (mm) 1485 • Lifting speed, laden/ unladen : m/ s 0.051/ 0.060 • Lowering speed, laden/ unladen : m/ s 0.052/ 0.059 • Maximum gradeability, laden/ unladen S2 5 min. : % 2/6 • Service brake : Electromagnetic • Drive motor rating S2 60 min. : kW 0.65 • Lift motor rating at S3 15% : kW 0.84
