Voltage generator Freedom SW

programmable

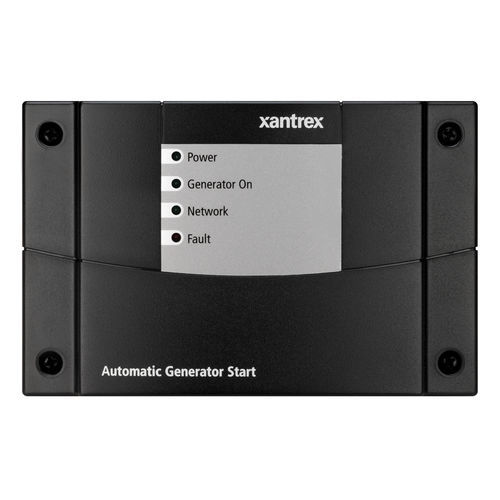

Designed for use with System Control Panel (SCP), the NEW Xanbus Automatic Generator Start (part# 809-0915) is compatible with the NEW GENERATION Freedom SW Inverter/Chargers (part# 815-2012 & 815-3012). Starting 2012, please use part# 809-0916 when ordering Automatic Generator Start for 1st Generation Freedom SW 3000 Inverter/Charger (815-3000). Both versions of Automatic Generator Start work with most popular generator brands. Automatically Starts and Stops Your Generator When Power is Needed The Xanbus Automatic Generator Start (AGS) is a control module that automatically activate a generator to provide Freedom SW Inverter/Charger* with power to recharge depleted batteries or assist with heavy loads. Having an AGS in your system means that power is available and battery banks are charged automatically so you do not have to spend time monitoring power consumption. The AGS can be customized to suit each user’s preferences. A user can define whether the generator should be activated by low battery voltage, battery state of charge, thermostat operation, or load size on the inverter. A Quiet Time setting prevents the generator from starting at inconvenient times like nightfall. LED lights display the status of the AGS, while all user defined settings are programmed through the Xanbus System Control Panel (SCP). The AGS is configured and controlled by the Xanbus System Control Panel (SCP). The SCP provides you with comprehensive control of your AGS through a user friendly interface that is easy to understand and operate. Certifications CSA certified to CSA 107.1-01 and UL 458 including Marine Supplement FCC part 15B Class B Industry Canada ICES-0003 Class B
