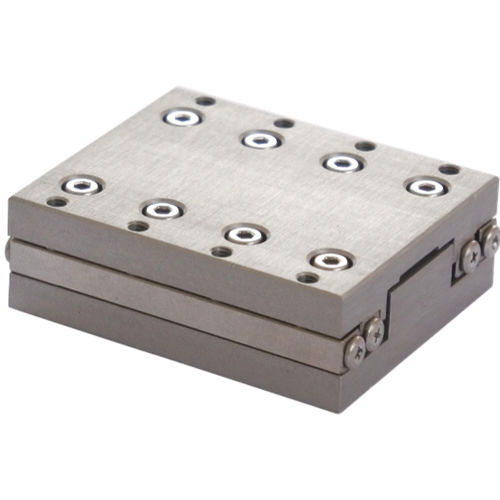

Linear stage XLS-1 original Seriespiezo2-axis1-axis
Add to favorites
Compare this product
Characteristics
- Orientation
- linear
- Type
- piezo
- Number of axes
- 2-axis, 1-axis, 3-axis
- Other characteristics
- precision, with sub-nanometer resolution
- Stroke
Min.: 27 mm
(1.063 in)Max.: 102 mm
(4.016 in)- Speed
Min.: 0 mm/s
Max.: 200 mm/s
Description
The Xeryon Linear Stage (XLS) is a precise linear stage driven by a noiseless ultrasonic piezo motor. This allows fast positioning with nanometre accuracy. The self-locking piezo motor holds the position of the stage when it is not powered. As a result, energy consumption and heat generation are considerably reduced. The integrated encoder has a resolution of 1.5µm (=1500nm).
