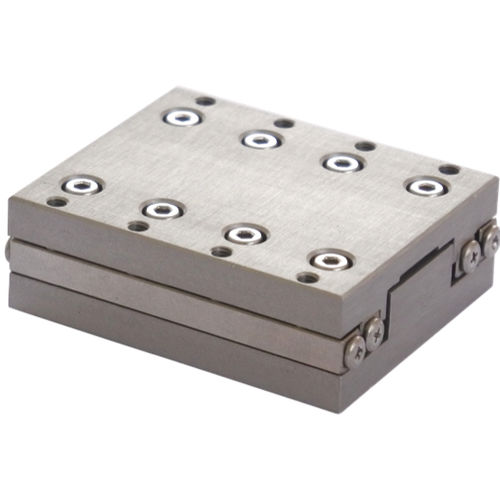

High-accuracy stage XLS-1 Precision Serieslinearpiezovacuum-compatible
Add to favorites
Compare this product
Characteristics
- Orientation
- linear
- Type
- piezo
- Other characteristics
- high-accuracy, vacuum-compatible, with sub-nanometer resolution
- Stroke
Min.: 27 mm
(1.063 in)Max.: 102 mm
(4.016 in)- Speed
Min.: 0 mm/s
Max.: 200 mm/s
Description
The Xeryon Linear Stage (XLS) is a precise linear stage driven by a noiseless ultrasonic piezo motor. This allows fast positioning with nanometre accuracy. The self-locking piezo motor holds the position of the stage when it is not powered. As a result, energy consumption and heat generation are considerably reduced. The integrated encoder has a resolution of 310 nm.
