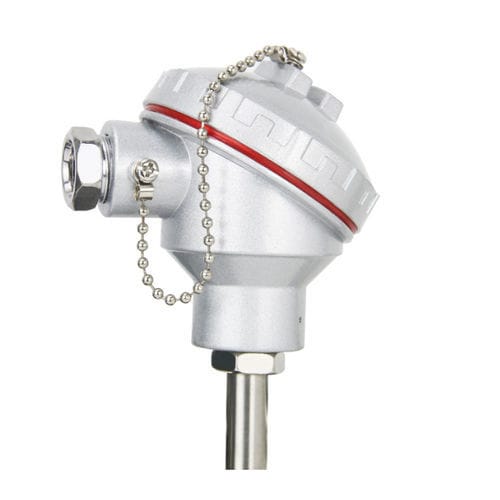

RTD temperature transmitter

Pt100resistance4-20 mA

YUNYI PT100 temperature probe sensor is a high-precision temperature measurement component based on the platinum resistance temperature measurement principle. The “PT” in its name represents platinum material, while “100” indicates a resistance value of 100Ω at 0°C. Leveraging platinum’s highly linear resistance-temperature relationship, it achieves precise temperature measurement across the range of -200°C to +850°C. PT100 sensors have become one of the most mainstream and reliable temperature measurement solutions in industrial applications due to their exceptional accuracy, outstanding stability, and excellent repeatability. Product Advantages 1. High-Precision Measurement: Class A accuracy up to ±(0.15 + 0.002t)°C, meeting the most stringent process requirements 2. Exceptional Stability: Annual drift less than 0.05°C, eliminating frequent recalibration during long-term use 3. Wide Temperature Range: Measures from -200°C to +850°C, suitable for diverse operating conditions 4. High Standardization: Complies with IEC 60751 international standards, ensuring excellent product interchangeability 5. Superior Linearity: Resistance-temperature characteristic curve approaches a straight line, simplifying signal processing 6. Multiple Structural Configurations: Customizable mounting styles and protection ratings based on application requirements Core Application Areas ✅ Industrial Process Control: Temperature monitoring for chemical reactors, petroleum refining units, and metallurgical furnaces ✅ HVAC Systems: Central air conditioning, heating systems, and cleanroom temperature/humidity control ✅ Food & Pharmaceutical Industry: Sterilization equipment, fermentation tanks,
