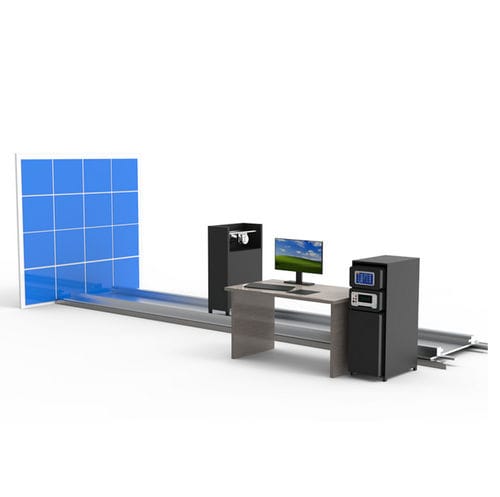

Calibration workstation

Product Overview YUNYI Non-Contact Level Gauge Calibration Device is an advanced testing apparatus based on high-precision sensing technology and intelligent algorithms, specifically designed for calibrating and validating various non-contact level gauges. By simulating real-world liquid level environments or providing standard liquid level reference values, it ensures the accuracy, stability, and reliability of the tested level gauges fully comply with national measurement standards and industry specifications. Suitable for diverse settings including industrial sites, laboratories, and metrology institutions, this device serves as an ideal solution in the field of liquid level measurement. Core Technical Features 1. High-Precision Simulation and Measurement - Wide-Range Liquid Level Simulation: Covers 0.1mm to 50m, meeting diverse application needs - Ultra-High Accuracy: Accuracy grade reaches ±0.05% FS, exceeding industry standards - Environmental Compensation: Built-in temperature and pressure compensation algorithms eliminate environmental interference - Compliance Standards: Meets international standards (ISO, IEC) and domestic metrology regulations 2. Multi-Type Level Gauge Compatibility - Comprehensive Compatibility: Supports radar level gauges, ultrasonic level gauges, laser level gauges, etc. - Signal Adaptation: Accommodates varying frequencies and signal output types (4-20mA, HART, Modbus, etc.) - Process Simulation: Simulates liquid medium parameters like dielectric constant and density - Complex Conditions: Adapts to calibration demands in diverse industrial environments 3. Intelligent Operating Platform - Smart Interaction: Features touchscreen HMI and remote control software - One-Click Verification: Supports fully automated verification for simple, efficient operation - Data Management: Automatically records data, generates reports, and enables historical traceability - AI Diagnostics: Built-in AI system automatically analyzes key metrics like linearity, repeatability, and hysteresis - Visual Analysis: Generates professional calibration curves for intuitive verification result visualization Application Areas 1. Industrial Sites - On-site verification of liquid level gauges in petrochemical storage tanks - Periodic calibration of ultrasonic liquid level gauges at water treatment plants - Validation of sanitary liquid level gauges in pharmaceutical and food industries 2. Metrology Institutions - Establishment of liquid level measurement standard equipment - Conducting mandatory verification services for liquid level gauges - Providing third-party calibration services 3. Laboratory Research - R&D testing of novel level gauge products - Research and validation of level measurement technologies - Study of measurement standard methodologies 4. Quality Inspection - Factory acceptance testing of level gauges - Acceptance testing of imported level gauges - Periodic verification of metrological performance Applicable Instrument Types - Radar Level Transmitters: Guided wave radar (all frequency bands), non-contact radar - Ultrasonic Level Transmitters: Ultrasonic instruments with various measurement ranges - Laser Level Transmitters: Short-range and long-range laser measurement instruments - Other Non-Contact Instruments: Radio frequency admittance, capacitive, etc. Product Advantages 1. Precision and Efficiency - Ultra-high Accuracy: ±0.05% FS precision meets the highest measurement requirements - Wide Range Coverage: 0.1mm to 50m, suitable for instruments across various measurement ranges - Rapid Calibration: One-button automatic completion boosts work efficiency 2. Intelligent and Advanced - AI Diagnostics: Intelligent analysis of instrument performance metrics - Automatic Compensation: Self-adjusting for environmental parameters - Data Visualization: Professional graphs and charts for clear results at a glance 3. Professional Reliability - Compliance Standards: Strict adherence to domestic and international measurement standards - Comprehensive Compatibility: Supports all types of non-contact level gauges - Stable Performance: Industrial-grade design ensures long-term operational stability Typical Application Scenarios - On-site Calibration in Tank Farm Areas: Provides online level gauge calibration for petrochemical enterprises without requiring tank emptying or production shutdowns - Precision Laboratory Testing: Delivers traceable standard level measurements for metrology institutions to establish calibration traceability systems - End-of-Line Testing for Production Lines: Enables instrument manufacturers to conduct comprehensive pre-shipment performance testing, ensuring product quality Quality Commitment - Rigorous Quality Inspection: Each unit undergoes strict quality control before shipment. - Traceable Standards: Measurement values traceable to national measurement standards. - Lifetime Maintenance: Lifetime technical support and maintenance services provided. - Product Name: YUNYI Non-contact liquid level gauge verification device - Brand: Yunyi Instrument - Measurement Range: 0.1mm to 50m - Accuracy: ±0.05% FS - Compatibility: Radar, ultrasonic, laser, RF admittance, capacitive non-contact level gauges - Signal Types Supported: 4-20mA, HART, Modbus, etc. - Compliance: ISO, IEC, domestic metrology regulations - Operating Platform: Touchscreen HMI, remote control, AI diagnostics - Application: Industrial, laboratory, metrology, quality inspection
