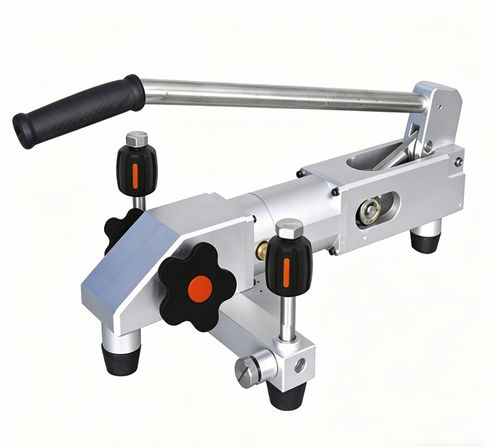

Manual test pump XY-2006C

high-pressurefor pressure generationfor pressure and vacuum

Short description
The Portable High-Pressure Gas Pressure Source, manufactured by Xi’an Yunyi, features a compact, portable design with excellent leak resistance. It combines a lever-operated coarse pressurization mechanism and a spiral fine-adjustment micrometer to provide a stable and reliable pressure source for laboratory and field calibrations. Pressure range: -0.095 MPa to 14 MPa. Complies with JB/T 599-2005 for pressure gauge testers.

Key Features

• Compact & Portable – Lightweight (5 kg) and small footprint (360×204×100 mm) for easy field transport.
• Leak-Resistant Construction – Advanced sealing minimizes leakage for sustained operation.
• Dual-Stage Pressure Generation – Lever for coarse pressurization and spiral micrometer for precise fine control.
• Wide Pressure Range – -0.095 MPa (vacuum) to 14 MPa (positive pressure) covering common calibration needs.
• High Stability – Stability class 0.02% for repeatable outputs.
• Fine Adjustability – Minimum adjustment resolution 10 Pa for ultra-fine tuning.
• Working Medium – Clean, dry air (no oil or special fluids required).
• Standard Pressure Connections – Two M20×1.5 female ports compatible with common adapters and test hoses.

Technical Specifications
Model — XY-2006C
Pressure Range — -0.095 ~ 14 MPa
Stability Class — 0.02%
Working Medium — Air
Minimum Adjustable Resolution — 10 Pa
Dimensions (L×W×H) — 360 mm × 204 mm × 100 mm
Weight — 5 kg
Pressure Connections — M20×1.5 (2 ports)
Applicable Standards — JB/T 599-2005

Typical Applications

• On-site calibration of pressure transmitters (current/voltage output)
• Pressure switches (setpoint verification)
• Analog and digital pressure gauges
• Pressure sensors and transducers
• Other pressure instruments and indicators

Common industries

• Petrochemical & natural gas
• Power generation
• Pharmaceutical & biotechnology
• Water treatment
• Calibration service laboratories
• Industrial maintenance and field service

Why Choose the XY-2006C?

• Time-saving on-site calibration – Perform reliable checks directly in the field without returning instruments to the lab.
• Easy operation – Lever reduces operator effort; fine-adjustment knob enables precise setting.
• Vacuum to high pressure – Single device handles negative and positive pressures.
• Low maintenance – Air medium avoids contamination and simplifies upkeep.
• Cost-effective – Durable design for long service life.

Safety & Operation Precautions

• Read the user manual carefully before first use; follow the specified valve sequence.
• Operate slowly when changing pressure to avoid spikes.
• Do not exceed the rated pressure range (max. 14 MPa).
• Use clean, dry air only; do not use corrosive or flammable gases.
• Regularly inspect connections for wear or leakage; replace seals as needed.
• After use, release all pressure before disconnecting or storing the device.

Ordering Information

• Standard delivery includes: Portable high-pressure gas pressure source (XY-2006C) ×1; M20×1.5 to quick-connect adapters (optional depending on configuration); spare sealing rings; instruction manual (English/Chinese).
• Optional accessories (sold separately): XY-2006C Intelligent Digital Pressure Calibrator; YK-100B Digital Pressure Gauge; high-pressure hoses with M20×1.5 fittings; carrying case.

Technical specifications

• Model: XY-2006C
• Pressure range: -0.095 ~ 14 MPa
• Stability class: 0.02%
• Working medium: Air
• Minimum adjustable resolution: 10 Pa
• Dimensions (L×W×H): 360 mm × 204 mm × 100 mm
• Weight: 5 kg
• Pressure connections: M20×1.5 (2 ports)
• Applicable standards: JB/T 599-2005
