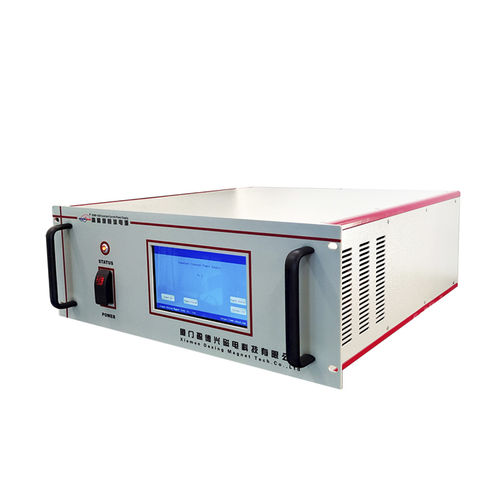

Constant-current power supply DXMP series

rack-mountDCsymmetrical output

This power supply is a highly stable bipolar constant current power supply, which is widely used in the excitation of inductive loads such as electromagnets and Helmholtz coils. The power supply adopts a linear power supply structure, with high output current stability, low ripple and noise. The output current of the power supply can continuously change between the positive and negative rated current extreme values, and the current smoothly and continuously crosses zero, allowing the electromagnet or coil to generate a smooth and stable magnetic field. With the company's high-precision Gaussmeter and probe (optional), the power supply can work in magnetic field mode. In the magnetic field mode, you can directly set the magnetic field value, and the power supply will adjust the output current to make the electromagnet quickly reach the set magnetic field, which is convenient and fast, and the magnetic field is stable. The field can be controlled individually at will, or the magnetic field can be scanned continuously. The current mode and magnetic field mode can be switched at any time according to needs, and the operation is flexible. Features: 1. The output current of the bipolar constant current output source can continuously vary between positive and negative rated current extremes. • The current smoothly crosses zero without breakpoints and non-switching commutation; • Output current and voltage four-quadrant operation (suitable for inductive loads); • The current change rate can be set in the range of 0.0007~0.3 F.S./s (F.S. is the rated output current extreme value);
