DC current source DX series

programmable

The Programmable Current Source (DX series) is a wide-spectrum, high-precision DC steady-current power supply offering fast response, high precision constant current and long-term stable operation for resistive, inductive and capacitive loads. Since the output current of a current source is fixed, it behaves in series with external circuit elements like an ideal current source; it can be converted equivalently with a voltage source in standard circuit transformations.

Key features

• Wide spectrum programmable DC current output with fast response and high stability.
• High precision current setting and low ripple/noise for sensitive measurement and control applications.
• Suitable for resistive, inductive and capacitive loads (electromagnets, coils, LEDs, precision measurement systems).
• Multiple cooling and configuration options across the DX product family (forced-air, water-cooling, true bipolar designs).

Applications

• Magnetism: Helmholtz coils; Maxwell coils; medium electromagnets; high-power solenoids.
• Electrical: True ohm measurement systems; low-resistance precision measurement; multimeter current-range calibration (0.1 level).
• Test systems: Hall test systems; vibrating sample magnetometer (VSM); thin-film magnetic measurement systems; 3D coil magnetic-field systems; rotating magnetic fields.
• Production line detection: Low-resistance online precision measurement; transformer operating temperature detection; precision motor control and detection.
• Semiconductor lighting: High-power LED aging tests; high-voltage LED lamp aging tests.
• Control systems: Precision temperature control; precision electrochemical control.

Caractéristiques / spécifications techniques

• Series name: DX series.
• General performance: high precision, low ripple and noise, fast response; typical noise ripple figures and bandwidth are listed per model below (bandwidth 300 kHz where indicated).
• DX-F2002 — Output current: ±105 mA; Step resolution: 1 μA (1/105,000); Accuracy: ±(0.015% set value + 2 μA); Effective noise ripple: 1.2 μA (BW 300 kHz); Output voltage range: 0–105 V; Max output power: 10 W; Output impedance >500 MΩ; Temperature coefficient (25±10°C): ±2 ppm/°C (max).
• DX-F2005 — Output current: ±1200 mA; Step resolution: 10 μA (1/120,000); Accuracy: ±(0.015% set value + 20 μA); Effective noise ripple: 12 μA (BW 300 kHz); Output voltage range: 0–42 V; Max output power: 50 W; Output impedance >100 MΩ; Temp. coeff.: ±2 ppm/°C (max).
• DX-F2030 — Output current: ±10 A; Step resolution: 0.1 mA (1/100,000); Accuracy: ±(0.1% set value + 2 mA); Effective noise ripple: 0.7 mA (BW 300 kHz); Output voltage range: 0–100 V; Max output power: 1000 W; Output impedance >300 kΩ; Temp. coeff.: ±20 ppm/°C (max).

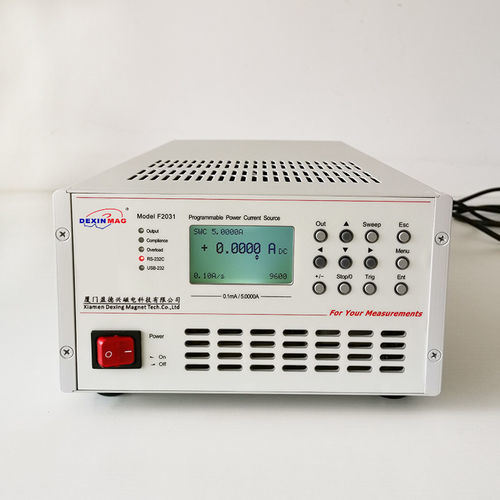

• DX-F2031 — Output current: ±5 A; Step resolution: 0.05 mA (1/100,000); Accuracy: ±(0.1% set value + 1 mA); Effective noise ripple: 0.2 mA (BW 300 kHz); Output voltage range: 0–60 V; Max output power: 300 W; Output impedance >2.5 MΩ; Temp. coeff.: ±5 ppm/°C (max).
• DX-F2036 — Output current: ±10 A; Step resolution: 0.1 mA (1/100,000); Accuracy: ±(0.1% set value + 2 mA); Effective noise ripple: 0.5 mA (BW 300 kHz); Output voltage range: 0–170 V; Max output power: 1700 W; Output impedance >300 kΩ; Temp. coeff.: ±20 ppm/°C (max).
• DX-F2070 (water-cooling) — Output current: ±65 A; Step resolution: 1 mA (1/65,000); Accuracy: ±(0.1% set value + 10 mA); Effective noise ripple: 3.5 mA (BW 300 kHz); Output voltage range: 0–120 V; Max output power: 7800 W; Output impedance >500 kΩ; Temp. coeff.: ±20 ppm/°C (max).
• DX-F2071 (forced-air cooling) — Output current: ±33 A; Step resolution: 0.1 mA (1/330,000); Accuracy: ±(0.1% set value + 5 mA); Effective noise ripple: 1.8 mA (BW 300 kHz); Output voltage range: 0–120 V; Max output power: 3960 W; Output impedance >500 kΩ; Temp. coeff.: ±20 ppm/°C (max).
• DX-F2106 (true bipolar) — Output current: ±2500 mA; Step resolution: 10 μA (1/250,000); Accuracy: ±(0.015% set value + 50 μA); Effective noise ripple: 70 μA (BW 300 kHz); Output voltage range: 0–21 V; Max output power: 50 W; Output impedance >100 MΩ; Temp. coeff.: ±2 ppm/°C (max).
• DX-F2130 (true bipolar) — Output current: ±10 A; Step resolution: 10 μA (1/1,000,000); Accuracy: ±(0.05% set value + 2 mA); Effective noise ripple: 1 mA (BW 300 kHz); Output voltage range: 0–60 V; Max output power: 600 W; Output impedance >1 MΩ; Temp. coeff.: ±10 ppm/°C (max).
